SS304-550-Disc Centrifuge
Basic Information
Model
JX-DC-550-SS304
Unit
set
Category
Disc Centrifuge
Delivery Time
30 Days
Package Size
2250x1700x1980 mm
Package Weight
2200 KG

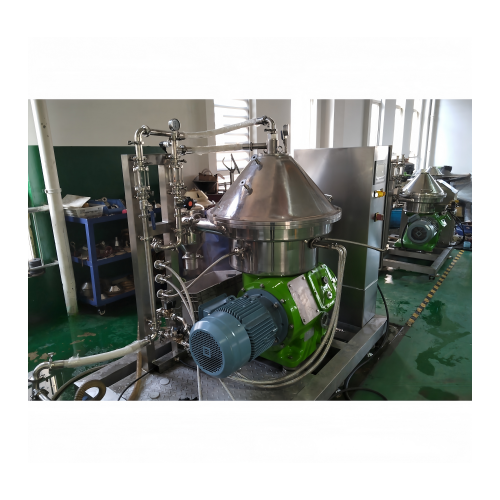

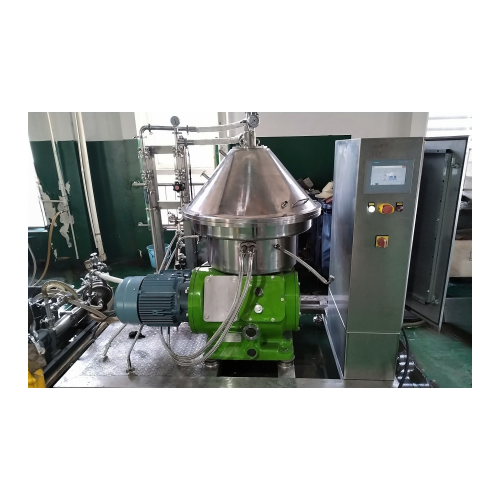

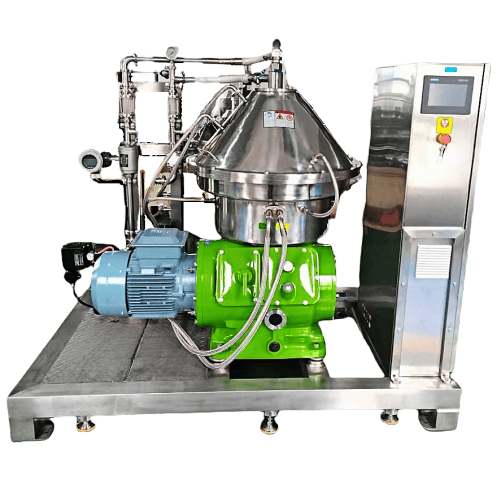

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DC-550 | — | — |
| Materialof Disc | SS304 | — | — |
| Feeding Capacity | 1.8-30 | m3/h | It depends on the material conditions. |
| Equipment size | ~1370*1600*1800 | mm | — |
| Equipment weight | ~2040 | KG | — |
Drum
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Material | SS2205 | — | — |
| Drum Diameter | Ф550mm | mm | Outer diameter: 630mm |
| Drive system | Belt Drive | — | — |
| Disc Material | 187pcs | — | SS304 |
| Disc Seat Material | SS304 | — | — |
| G-Force | 1.3g/cm³ | — | — |
| Inlet And Outlet Pipe Material | SS304 | — | — |
| Maximum Speed | 5785 | rpm | — |
Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Maximum Speed | 1475 | rpm | — |
| Motor Brand | ABB | — | — |
| Power | 30 | KW | — |
| Power Supply | 380V/Customizable | — | — |
Control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Touch Screen | Siemens | — | — |
| Low Voltage Parts | Schneider | — | — |
| PLC | Siemens | — | — |
