SS304-550+3P-Horizontal Decanter Centrifuge
Basic Information
Model
JX-LWS-550
Unit
set
Category
Horizontal Decanter Centrifuge
Delivery Time
30 Days
Package Size
5150x1230x1510 mm
Package Weight
4590 KG

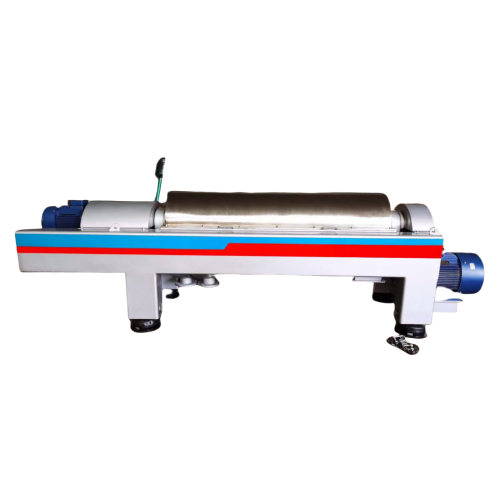

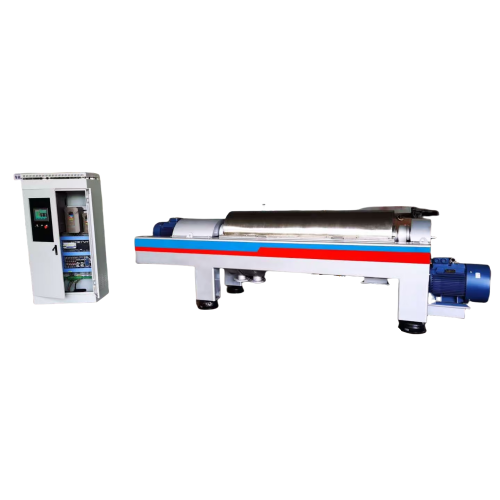

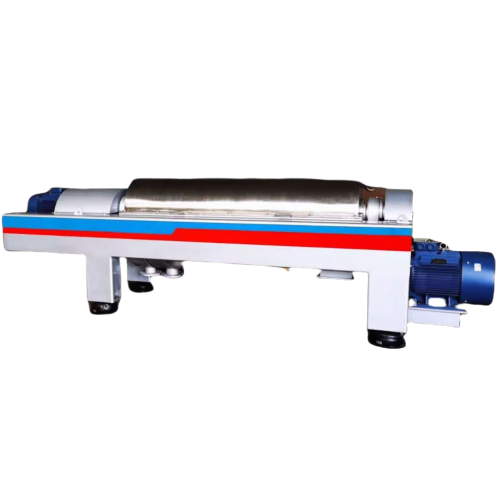

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor | Siemens | — | — |
| Electric components in control cabinet | Schneider | — | — |
| Inverter brand | Euradrives | — | — |
Main technical parameter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotary drum diameter | 550 | mm | — |
| Rotary drum length | 2200 | mm | — |
| Length-to-diameter ratio | 4.0 | L/D | — |
| Max. design speed | 3000 | r/min | — |
| Differential speed | variable speed control | r/min | — |
| Max. capacity | 15-20 | m3/h | — |
| Main motor power | 55-4P | KW | — |
| Ancillary motor power | 22-2P | KW | — |
| Differential mechanism type | Planetary gear | — | — |
| Main bearinglubrication | Grease lubrication | — | — |
| Overall weight | ~4500 | kg | — |
| Centrifuge dimension | 5041*1130*1408 | mm | — |
| Moisture content | ≤80 | % | After separation, solid has moisture content |
| Power requirements | 380V 50HZ 3 phase | — | — |
Main parts and material
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material that contact with the liquid | 304 stainless steel | — | — |
| Frame material | Carbon Steel | — | — |
| Bearing Brand | NSK | — | — |
| Control cabinet | SS304 | — | — |
| Equipment paint | Automobile paint | — | — |
Functional performance
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Operation mode of centrifuge | Continuous | — | — |
| Control mode | Automatic liquid discharge and slag discharge | — | — |
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | — | — | |
| Material | — | — | |
| Feeding Method | — | — | |
| Feed Concentration | % | — | |
| Processing Capacity | m3/h | — | |
| Moisture Content Of Solids After Treatment | % | — | |
| Solid Removal Efficiency | % | — | |
| Differential Speed Of Screw Conveyor | r/min | — | |
| Overall Dimensions (L × W × H) | mm | — | |
| Total Weight | KG | — |
Drum Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Inner Diameter | mm | — | |
| Drum Working Length | mm | — | |
| Maximum Drum Speed | r/min | — | |
| Separation Factor | — | — | |
| Length-to-diameter Ratio (L/d) | — | — | |
| Rotation Direction Of Drum And Pulley (viewed from small end) | — | — | |
| Differential Mechanism Type | — | — | |
| Dynamic Balance Accuracy | — | — |
Screw Conveyor Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw blade Characteristics | — | — | |
| Dynamic Balance Accuracy | — | — |
Motor Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Electrical Protection Grade | — | — | |
| Motor Insulation Class | — | — | |
| Power Requirements | — | — | |
| Main Motor Rated Power | KW | — | |
| Auxiliary Motor Power | KW | — |
Others
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Load Vibration Severity | mm/s | — | |
| Differential Torque | N | — | |
| Lubrication Method | — | — | |
| Working Mode | — | — | |
| Operating Noise (measured 1m from the dewatering unit) | dB(A) | — |
Price
$60318
per set
