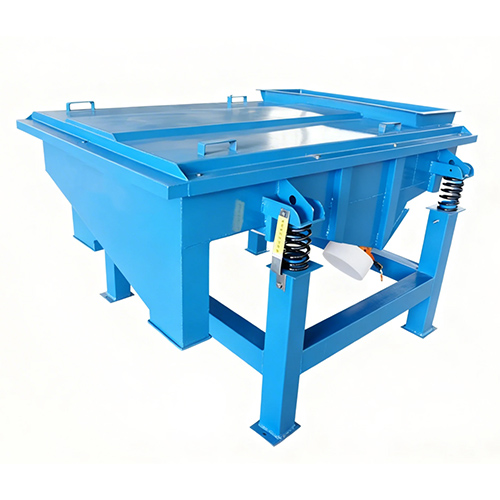

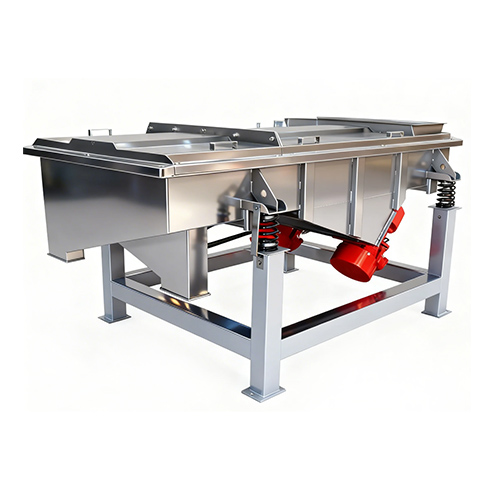

SS304-520-1S-Linear Vibrating Screen Machine
Basic Information
Model
JX-RVS-520-1S-SS3047
Unit
set
Category
Linear Vibrating Screen Machine
Delivery Time
30 Days
Package Size
2460x760x1100 mm
Package Weight
630 KG
Technical Specifications
General Paraneters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-RVS-520-1S | — | — |
| Material | SS304 | — | — |
| Production Capacity | Customizable | — | — |
| Dimensions (LWH) | 2360.5*656*1000 | mm | — |
Screening Surface Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Number of Screen Layers | 1 | S | — |
| Screening accuracy | Customized by Customer | — | — |
| Screen Surface Area | 0.98 | m2 | — |

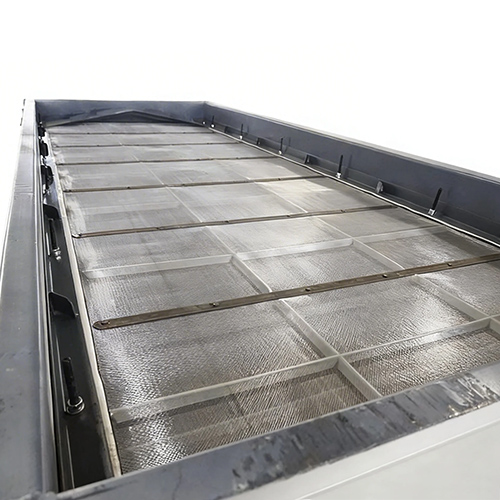

| Screen Structure | Woven mesh | — | — |
Drive Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 2*0.25 | KW | — |
| Power Supply | 3-phase/380V/50HZ | — | — |
Components
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dust Cover | Stainless steel 304 | — | 2.0mm |
| Box | Stainless steel 304 | — | 3.0mm |
| Frame | Stainless steel 304 | — | — |
| Screen Mesh | Stainless steel 304 | — | — |
| Dowel Plate | Carbon steel Q235 | — | 6.0mm |
| Motor Board | Carbon steel Q235 | — | 10.0mm |
| Spring | Galvanized iron spring | — | — |
Price
$3335
per set
