SS304-500*2000-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-500
Unit
set
Category
500-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
3300x900x1550 mm
Package Weight
630 KG

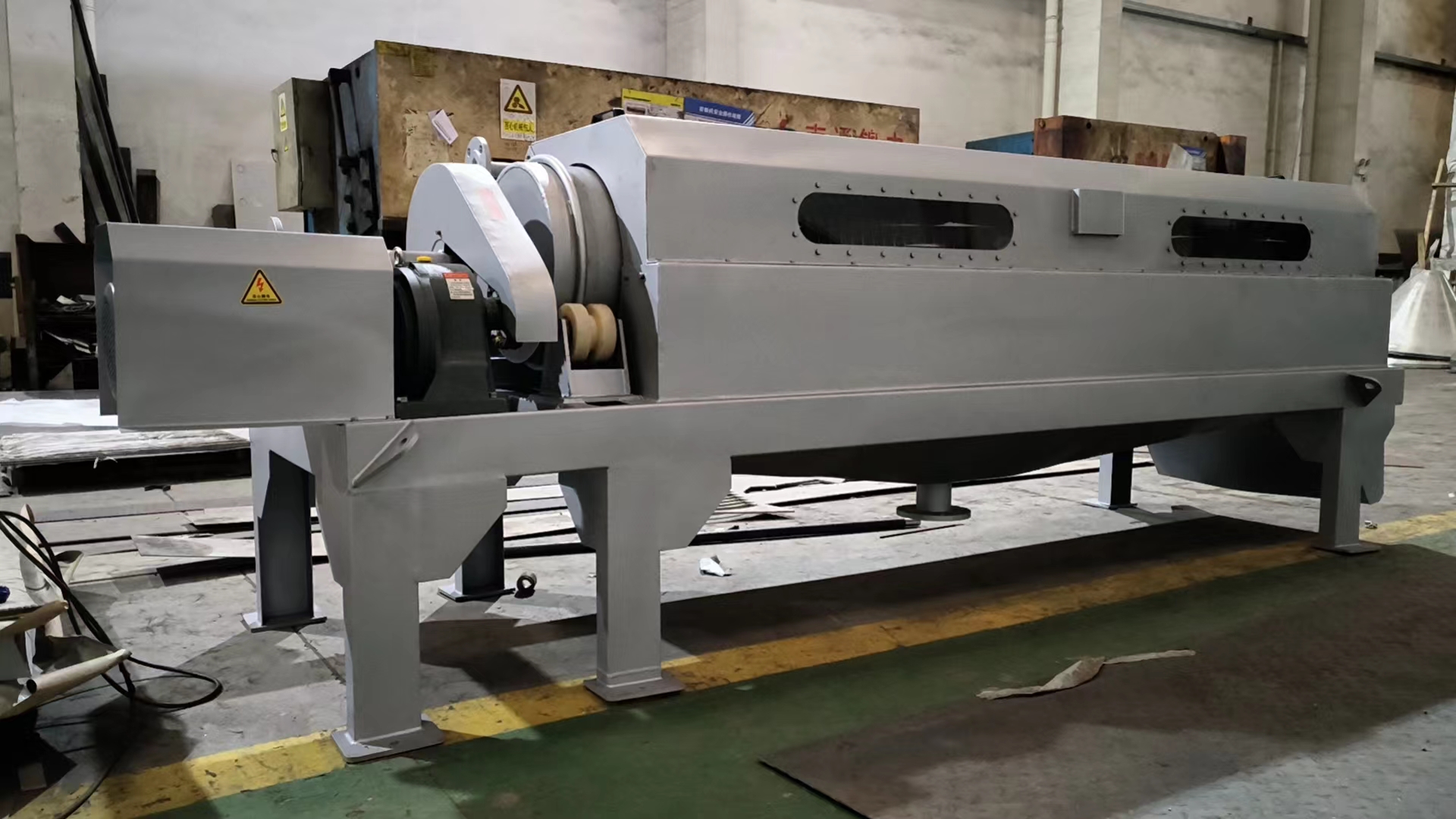

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotary drum screen | Ф500*2000 | mm | — |
| Filtering area | 3.14 | m2 | — |
| Inlet | As per customer drawing | — | — |
| Outlet | As per customer drawing | — | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| REV | 6 | r/min | — |
| Slot size | Refer to the specification in the price list | mm | — |
| Backwash cleaning pipe | As per customer drawing | — | — |
| Slag discharge way | hopper | — | — |
| Water spray pressure | 0.6 | MPa | — |
| Power | 0.75 | KW | — |
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | mm | — | |
| Size | mm | — | |
| Filtering area | m2 | — | |
| Teatment capacity | m3/h | — | |
| Main Material | — | — | |
| Equipment Weight | KG | — | |
| Installation Size | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | — | — | |
| Filter Precision | mm | — | |
| Filter Material | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | — | — | |
| Power | KW | — | |
| Rated Voltage | — | — | |
| Rotation Speed | r/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | — | — | |
| Outlet | — | — | |
| Backwash cleaning pipe | — | — |
Price
$8730
per set
