SS304-400+D1500-Bar Screen
Basic Information
Model
JX-GF-J400-304
Unit
set
Category
Stepped Grille
Delivery Time
30 Days
Package Size
1800x800x3500 mm
Package Weight
650 KG

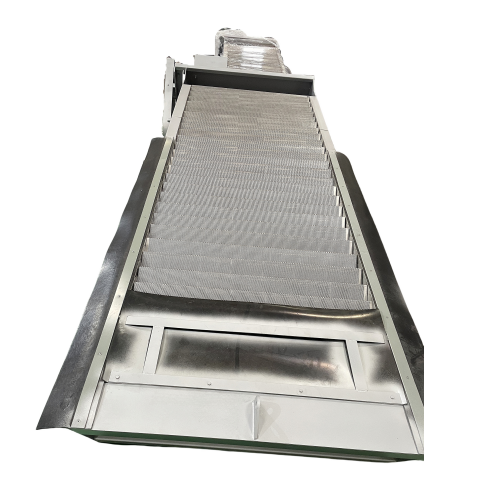

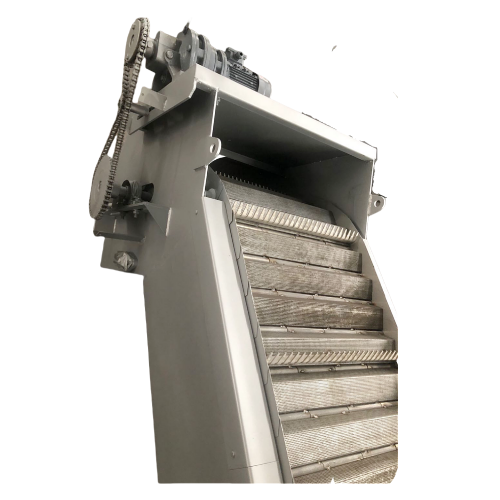

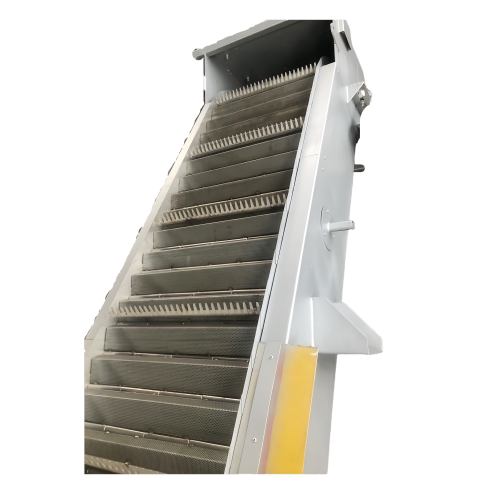

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF-J400 | — | — |
| Material | SS304 | — | — |
| Overall Dimensions (L*W*H） | See drawing | mm | — |
| Total Weight | ~580 | kg | — |
Channel Equipment
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Channel Width | 500 | mm | — |
| Channel Depth | 1500 | mm | — |
| Clearance | 5 | mm | — |
| Machine Width | 400 | mm | — |
| Installation Angle | 75° | — | — |
| Discharge height | 800 | mm | — |
| Rake moving speed | ~2 | m/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Brand | Siemens/Beide | — | — |
| Motor Power | 0.75 | KW | — |
| Motor Protection Level | IP55/IP65 | — | — |
| Motor Insulation Level | F | — | — |
Price
$7250
per set
