SS304-400*1500-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-400
Unit
set
Category
400-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
2100x900x1050 mm
Package Weight
420 KG

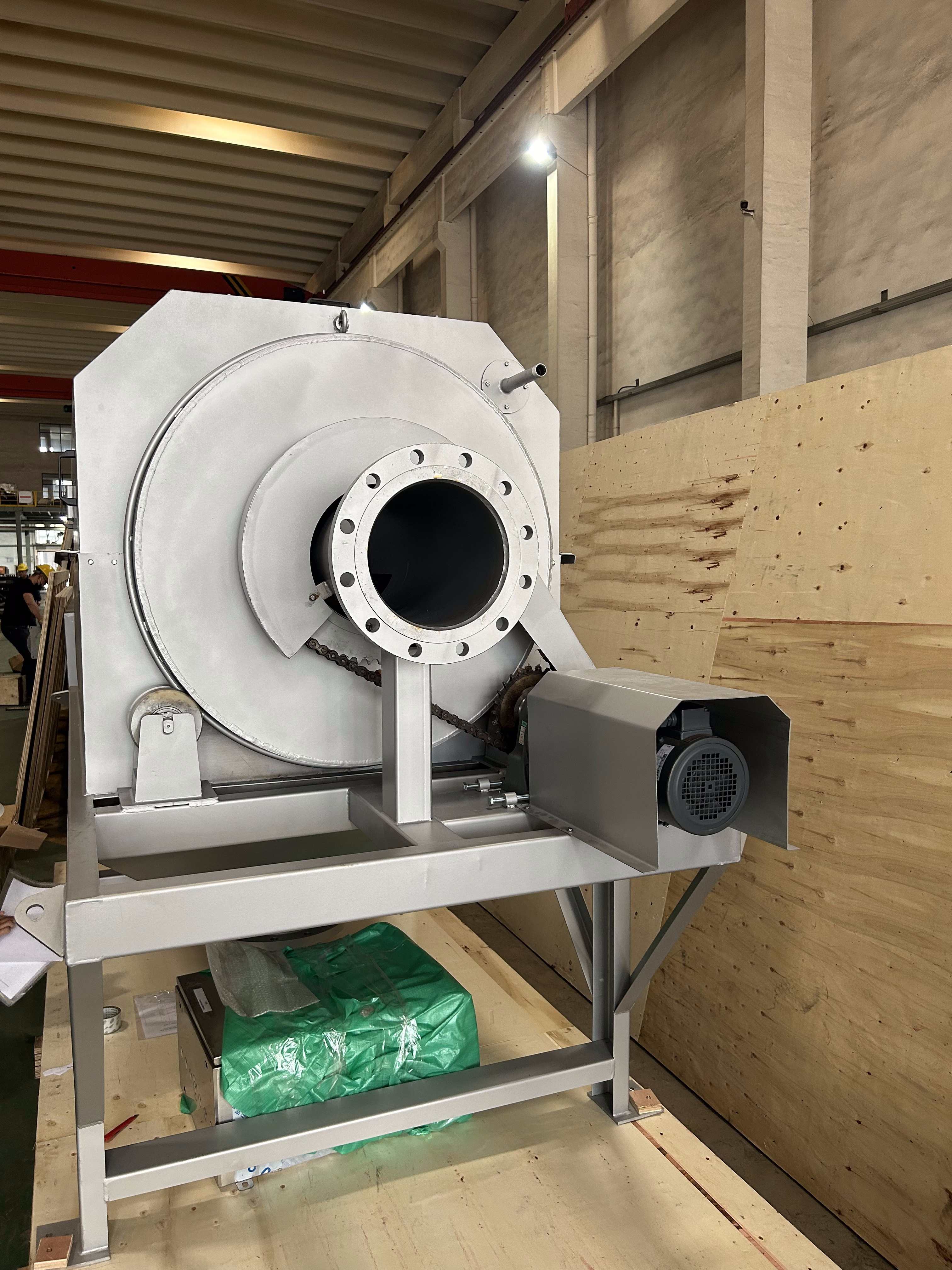

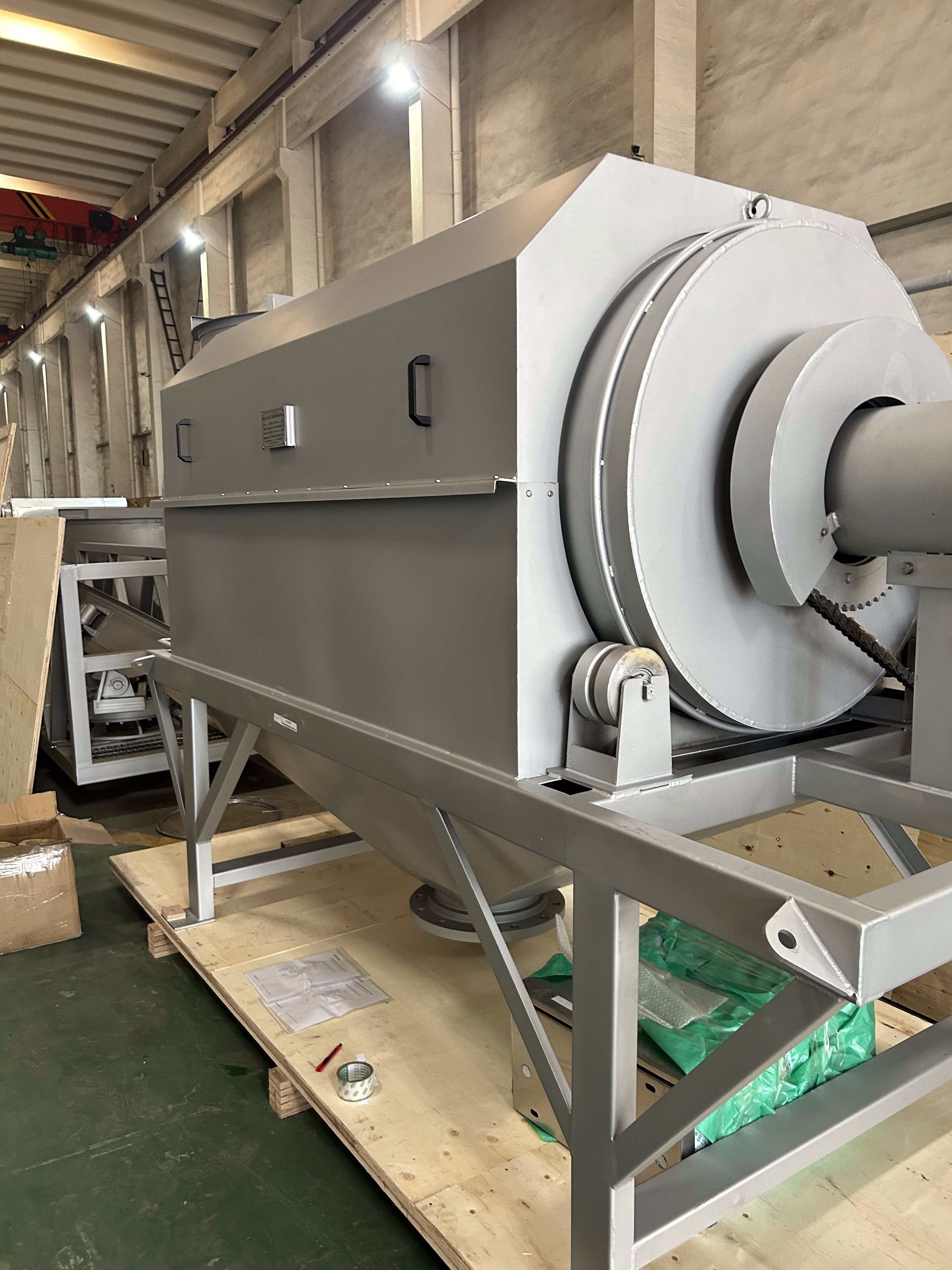

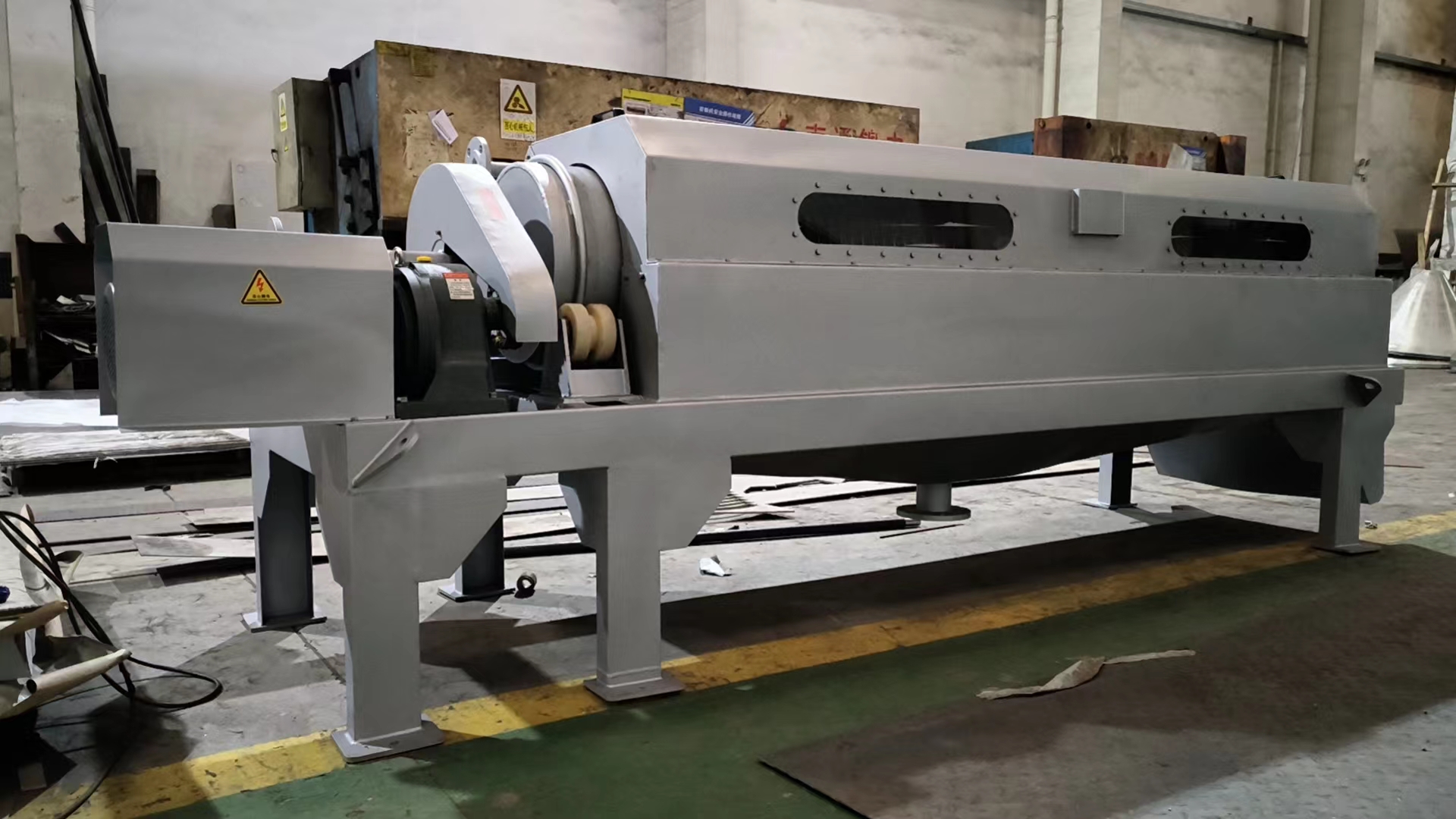

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rotary drum screen | Ф400*1500 | mm | — |
| Filtering area | 1.88 | m2 | — |
| Inlet | As per customer drawing | — | — |
| Outlet | As per customer drawing | — | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| REV | 6 | r/min | — |
| Slot size | Refer to the specification in the price list | mm | — |
| Backwash cleaning pipe | As per customer drawing | — | — |
| Slag discharge way | hopper | — | — |
| Water spray pressure | 0.6 | MPa | — |
| Power | 0.55 | KW | — |
Price
$5658
per set
