SS304-40㎡-Scraper Discharge Vacuum Drum Filter
Basic Information
Model
JX-G40
Unit
set
Category
Scraper Discharge Vacuum Drum Filter
Delivery Time
30 Days
Package Size
4700x4025x4750 mm
Package Weight
11000 KG

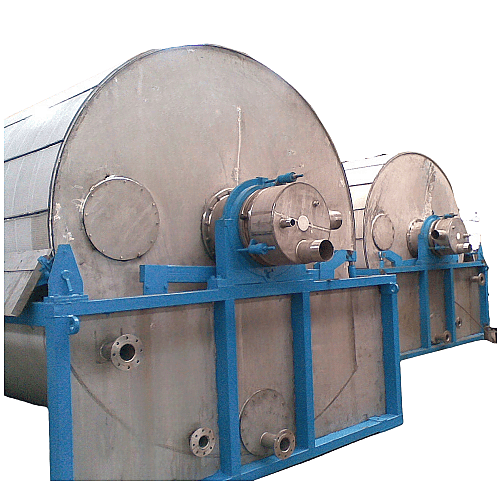

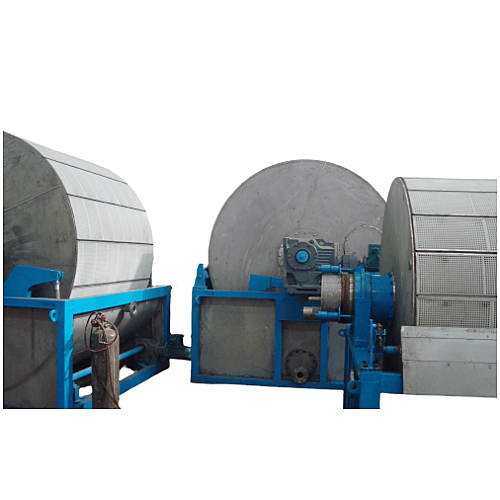

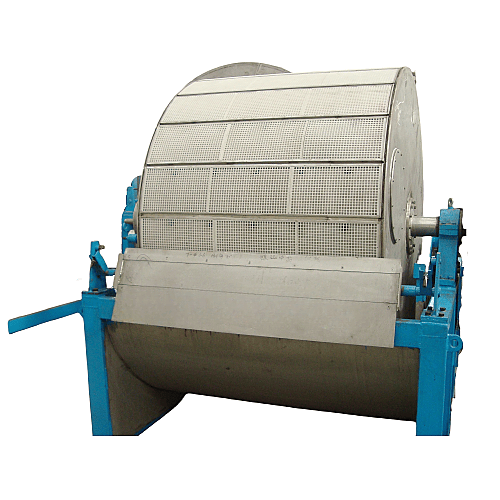

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G40 | — | — |
| Vacuum Drum | 1 | — | — |
| Vacuum Pump | 1 | — | — |
| Gas-Liquid Separator | 1 | — | — |
| Pre-coating Tank | / | — | — |
| Control Cabinet | 1 | — | — |
Filter machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 40 | m2 | — |
| Effective Width of Filtration Surface | 3650 | mm | — |
| Drum Diameter | 3505 | mm | — |
| Drum Speed | 0.1-2 | r/min | Frequency control |
| Main Motor Power | 3 | — | — |
| Gas Distributor Material | Phenolic laminate/PP | — | — |
| Storage Tank | SS304 | — | — |
| Drum Body | SS304 | — | — |
| Scraper | PP | — | — |
| Filter Cloth | 750B, PP | — | — |
Gas-liquid separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 1000 | mm | SS304 |
| Drainage Capacity | 20 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | — | — |
Vacuum pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 2BEA303 | mm | Carbon steel |
| Motor Power | 75 | kw | — |
Electrical control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Chinese brand | — | ExdIIBT3 |
| Reducer | Well-known Chinese brand/Schneider | — | — |
| Motor | Well-known Chinese brand/Schneider | — | — |
Price
$127000
per set
