SS304-270-Disc Centrifuge
Basic Information
Model
JX-DC-270-304
Unit
set
Category
Disc Centrifuge
Delivery Time
30 Days
Package Size
1000x1300x1200 mm
Package Weight
420 KG

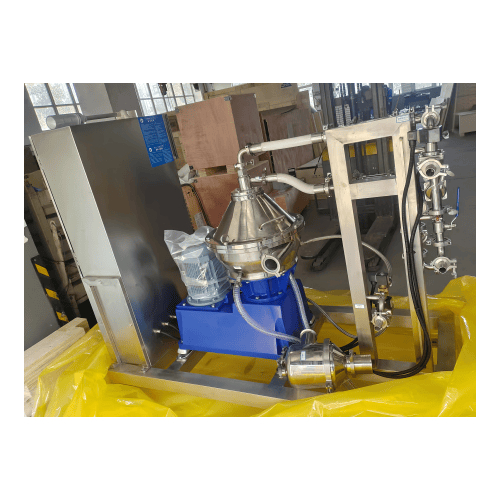

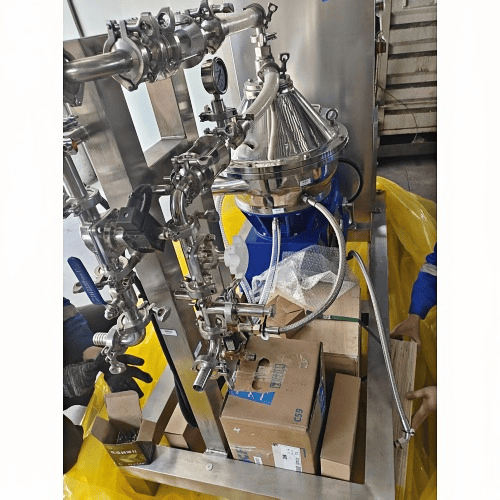

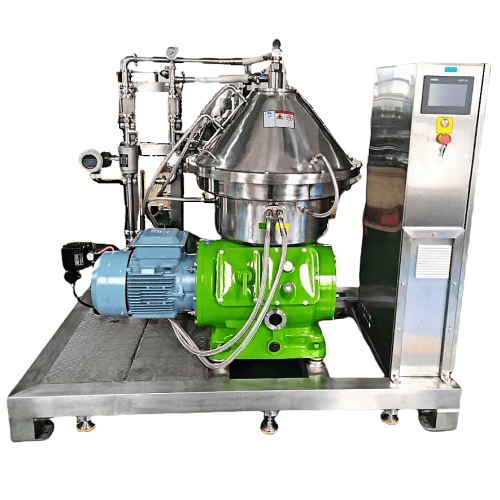

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DC-270 | — | — |
| Materialof Disc | SS304 | — | — |
| Feeding Capacity | 0.5-1 | m3/h | — |
| Equipment size | 900*1200*1100 | mm | — |
| Equipment weight | ~280 | KG | — |
Drum
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Drum Material | SS2205 | — | — |
| Drum Diameter | 270 | mm | — |
| Maximum Speed | 9600 | rpm | — |
| Disc Material | SS304 | — | — |
| Disc Seat Material | SS304 | — | — |
| G-Force | 11197 | — | — |
| Chamber Volume | 26.87*107 | cm2 | — |
| Inlet And Outlet Pipe Material | SS304 | — | — |
| Drive system | Belt Drive | — | — |
Motor
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Power | 3 | KW | — |
| Maximum Speed | 2900 | rpm | — |
| Motor Brand | Siemens-Innomotics | — | — |
| Power Supply | 380V, 50hz or as per customer’s request | — | — |
Control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Touch Screen | Siemens | — | — |
| Low Voltage Parts | Schneider | — | — |
| PLC | Siemens | — | — |
