SS304-260-Variable Pitch Screw Press Type Solid Liquid Separator
Basic Information
Model
JX-ZDZ-J260-304
Unit
set
Category
Biomass Crushing and Pressing Integrated Machine
Delivery Time
30 Days
Package Size
2410x1100x1880 mm
Package Weight
1350 KG

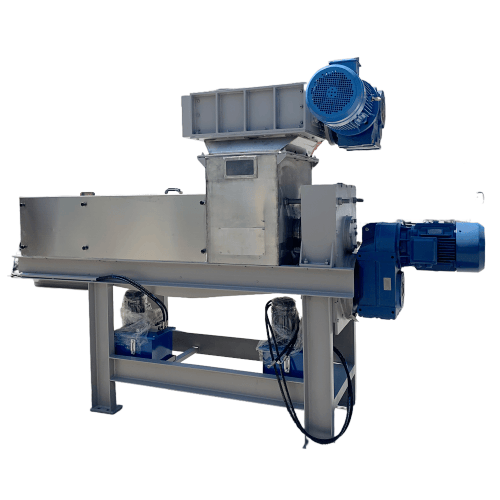

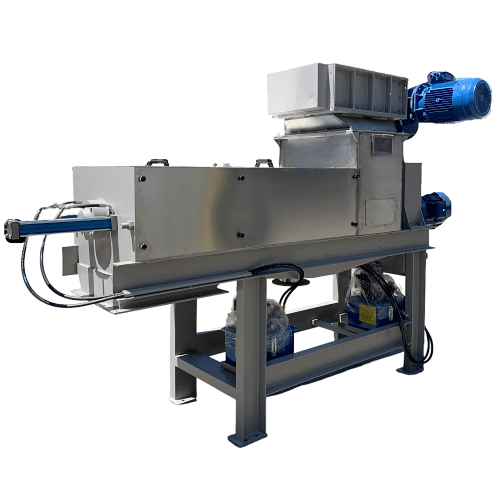

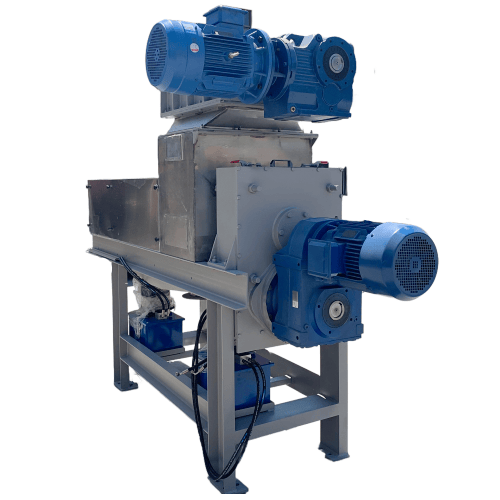

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | Refer to the specification in the price list | Kg/h | — |
| Model | JX-ZDZ-J260 | — | — |
| Material | SS304 | — | — |
| Installation Dimensions | ~2306*1000*1778 | — | — |
Feeding System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Gravity Feeding | — | — |
Crushing System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Crusher Rotor Diameter | 120 | mm | — |
| Crusher Speed | 22-25 | rpm/min | — |
| Crusher Housing Material | SS304 | — | — |
Pressing System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screw Main Body Material | SS304 | — | — |
| Screw Diameter | 260 | mm | — |
| Screw Rotation Speed | 12-15 | rpm/min | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Media | SS304 | — | — |
| Filtration Method | Wedge Wire | — | — |
| Filtration Precision | Customizable | mm | — |
Separation & Collection Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Discharge Method | Hydraulic/Manual/Pneumatic | — | — |
| Collection Trough | SS304 | — | — |
Drive System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Juicer Power | 5.5 | KW | — |
| Crusher Power | 4 | KW | — |
| Motor Brand | Siemens | — | — |
| Power Supply | 380V/50HZ | — | Customizable |
Additional Components
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | Electric Control Cabinet/PLC/Manual | — | — |
| Cleaning System | Internal Cleaning System | — | — |
