SS304-2200-Sand Filter(Without control system and pipeline valves)
Basic Information
Model
JX-DZ-2200
Unit
set
Category
Sand Filter
Delivery Time
30 Days
Package Size
2400x2400x3550 mm
Package Weight
1800 KG

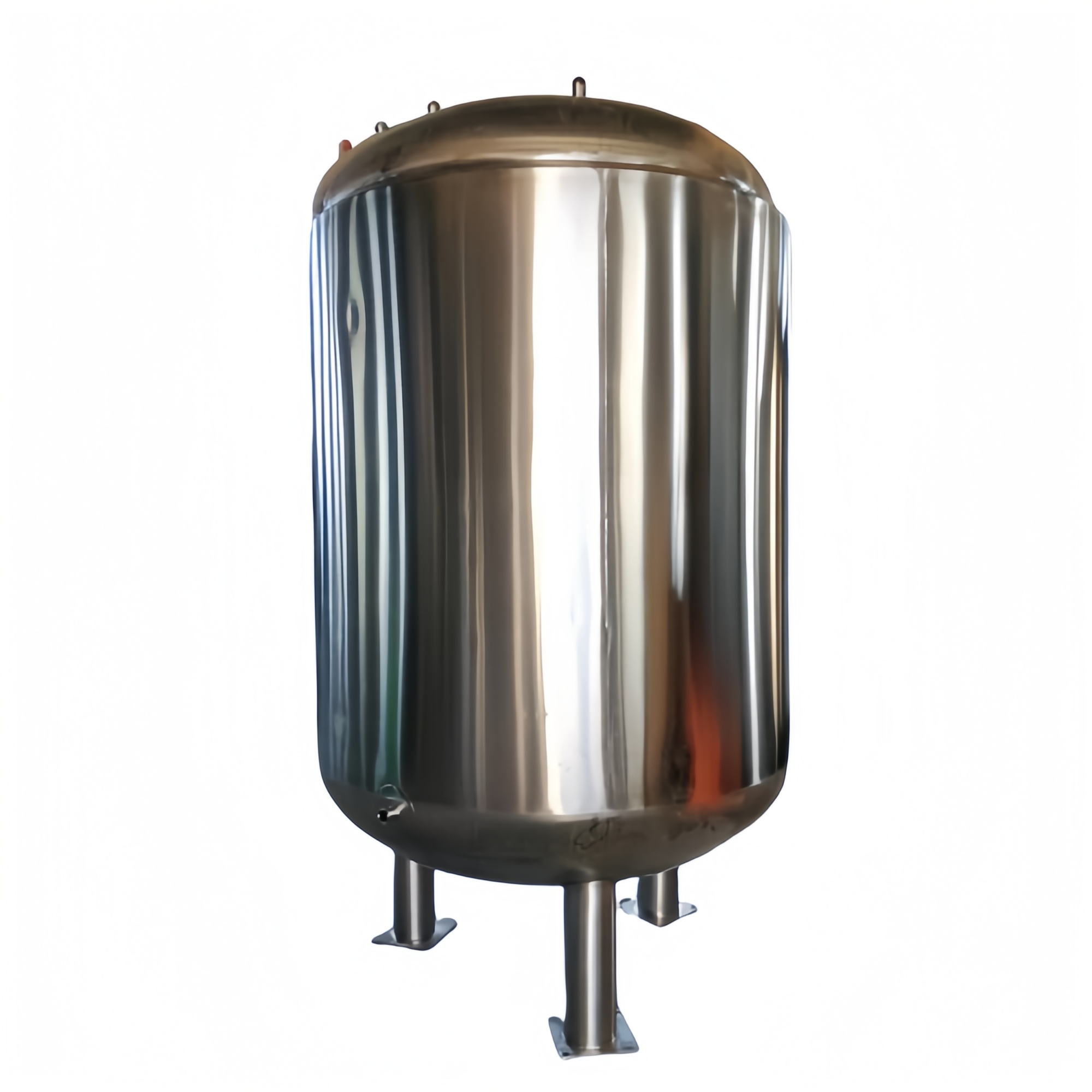

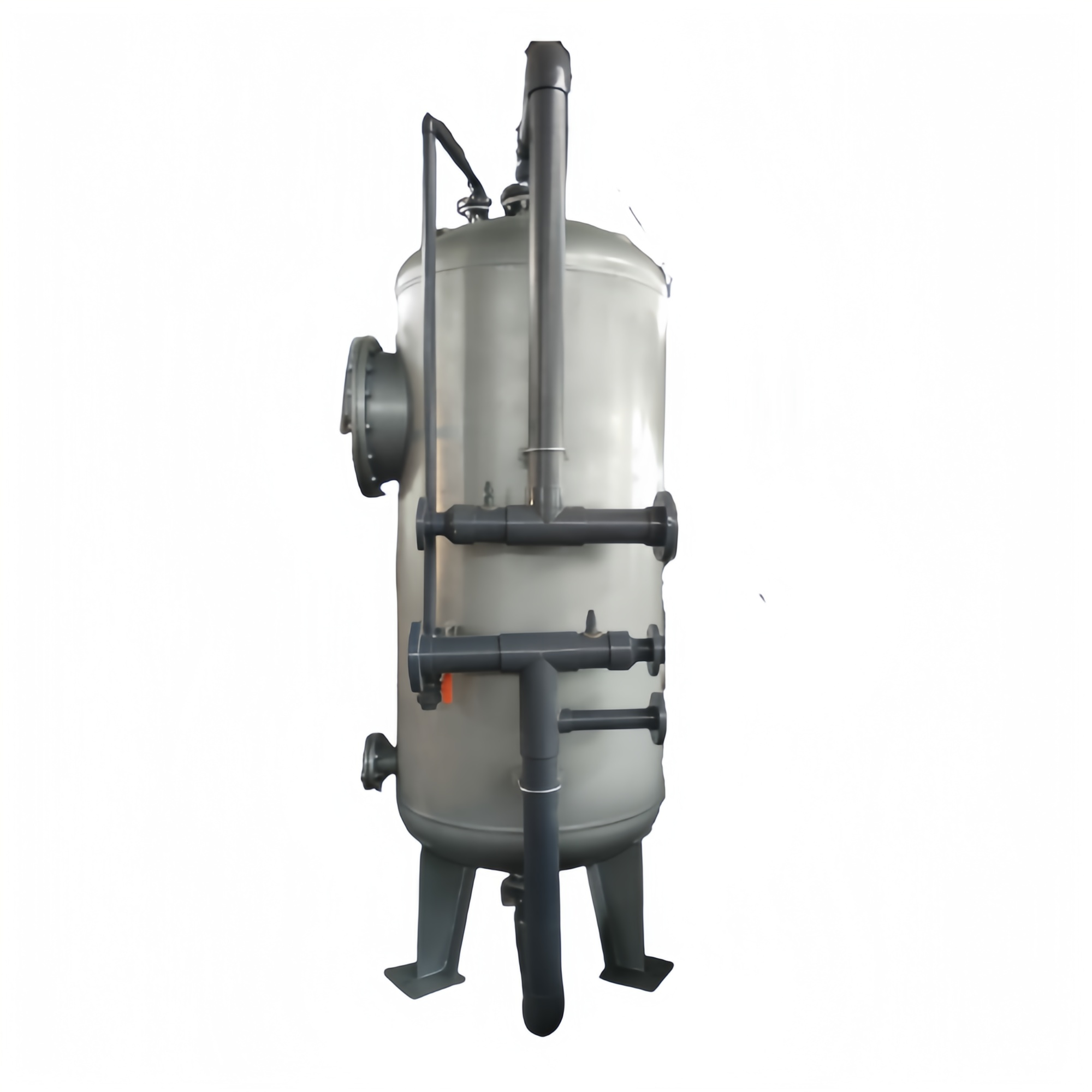

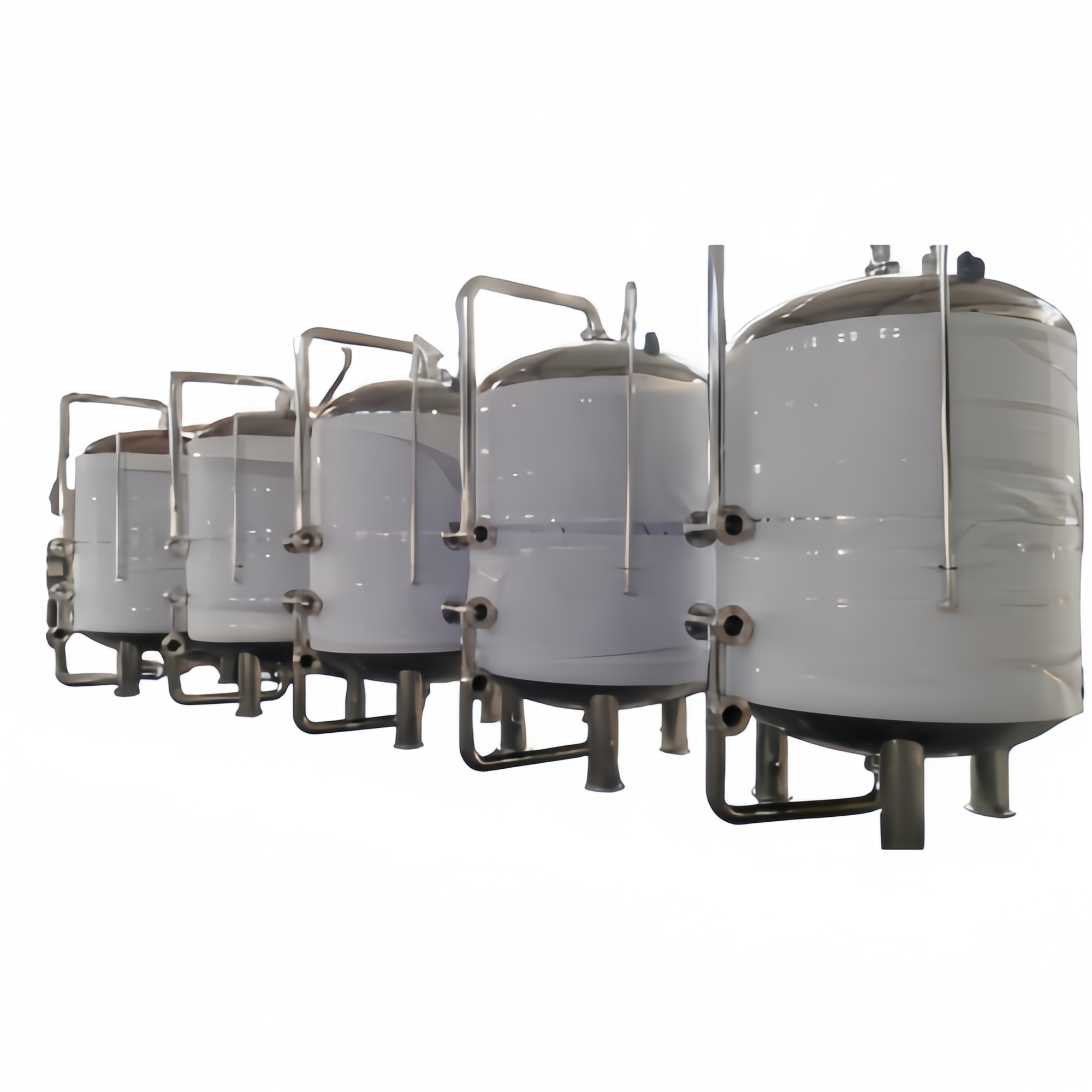

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DZ-2200 | — | — |
| Total Capacity | Refer to the specification in the price list | m3/h | — |
| Material | SS304 | — | — |
| Working pressure | 1.0 | Mpa | — |
| Design Pressure | 0.2-0.4 | Mpa | — |
| Operating Temperature | <70℃ | ℃ | — |
| Dimensions (LWH) | 2350x2300x3500 | mm | — |
| Total Weight | ~1810 | kg | — |
Tank Body
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Upper Distributor Material | SS304 | — | — |
| Lower Distributor Material | SS304 | — | — |
| Manhole Size | See drawing | — | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet Pipe | See drawing | — | — |
| Outlet Pipe | See drawing | — | — |
| Vent Pipe | See drawing | — | — |
| Backwash Drain Pipe | See drawing | — | — |
| Flange Connection Standard | See drawing | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | Not included | — | — |
| Valve | No Valve | — | — |
Price
$7000
per set
