SS304-2㎡-Pre-coating Vacuum Drum Filter
Basic Information
Model
JX-GF2-304
Unit
unit
Category
Pre-coating Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2400x1780x1800 mm
Package Weight
1600 KG

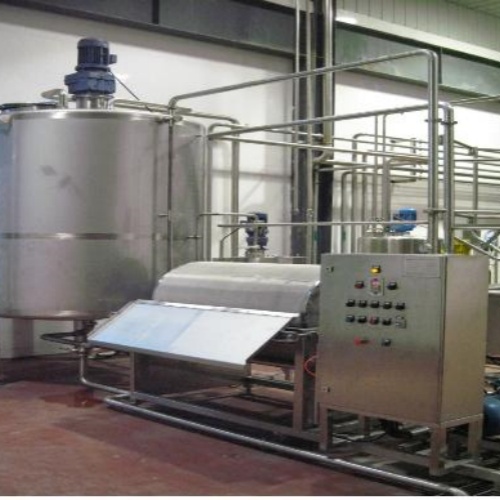

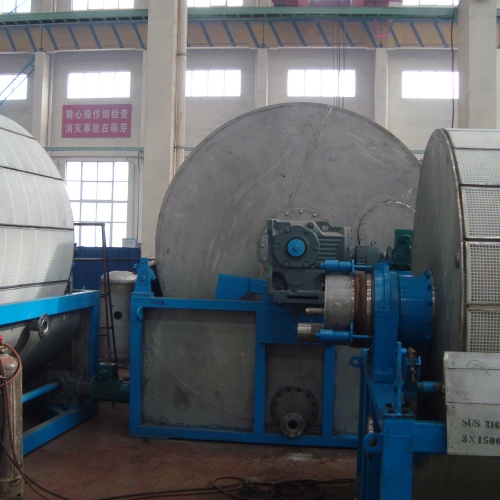

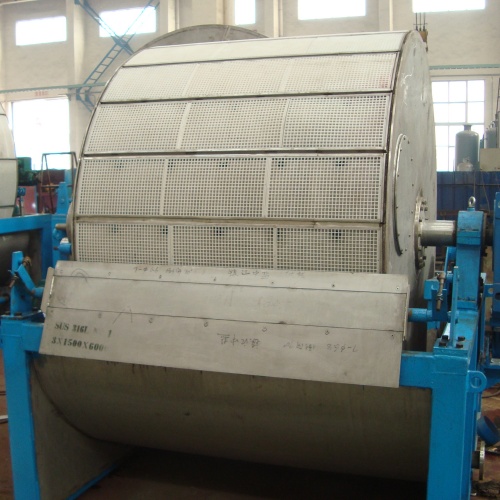

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF2 | — | — |
| Material | SS304 | — | — |
| Filtration Area | 2 | m2 | — |
| Drum Diameter | 1310 | mm | — |
| Drum Rotation Speed | 0.13-3.0 | r/min | — |
| Operating Vacuum | 1.83 | Mpa | — |
| Filter Surface Effective Width | 500 | mm | — |
| Agitation Frequency | 20 | times/min | — |
| Main Motor Power | 0.75 | KW | — |
| Filter Cloth | PP | — | 2 |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 500 | mm | Overall dimension:Φ400*1800 |
| Discharge Capacity | 5 | m³/h | — |
| Operating Pressure | ≤-0.09 | MPa | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 2BV2071 | — | Carbon steel material (blade not stainless steel 316L) |
| Motor Power | 3.85 | KW | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | Chinese brand | — | — |
| Reduction Gear | Well-known Chinese brand | — | — |
| Motor | Well-known Chinese brand | — | — |
Price
$19800
per unit
