SS304-1800-Sand Filter
Basic Information
Model
JX-DZ-1800
Unit
set
Category
Sand Filter
Delivery Time
30 Days
Package Size
2100x2100x3400 mm
Package Weight
1200 KG

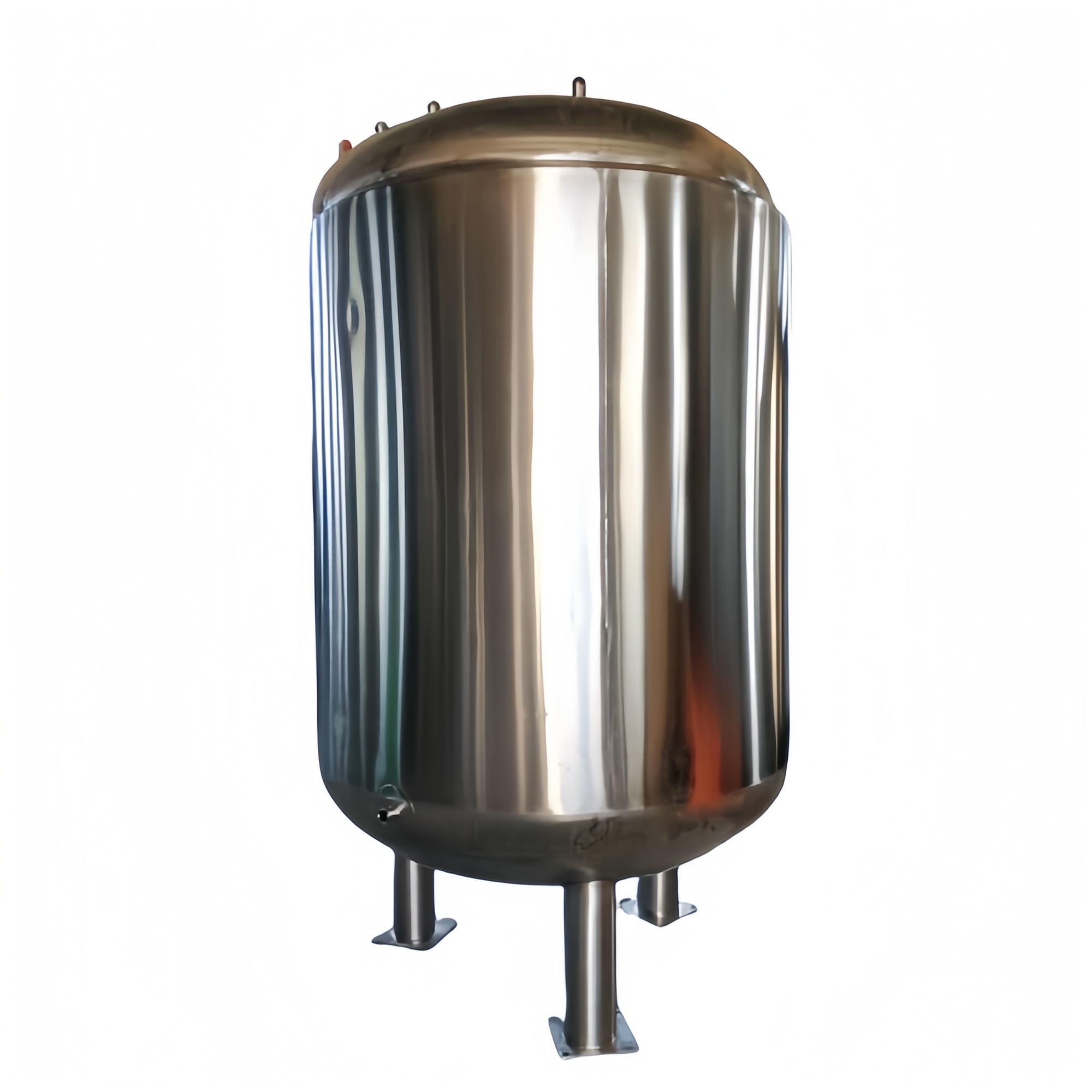

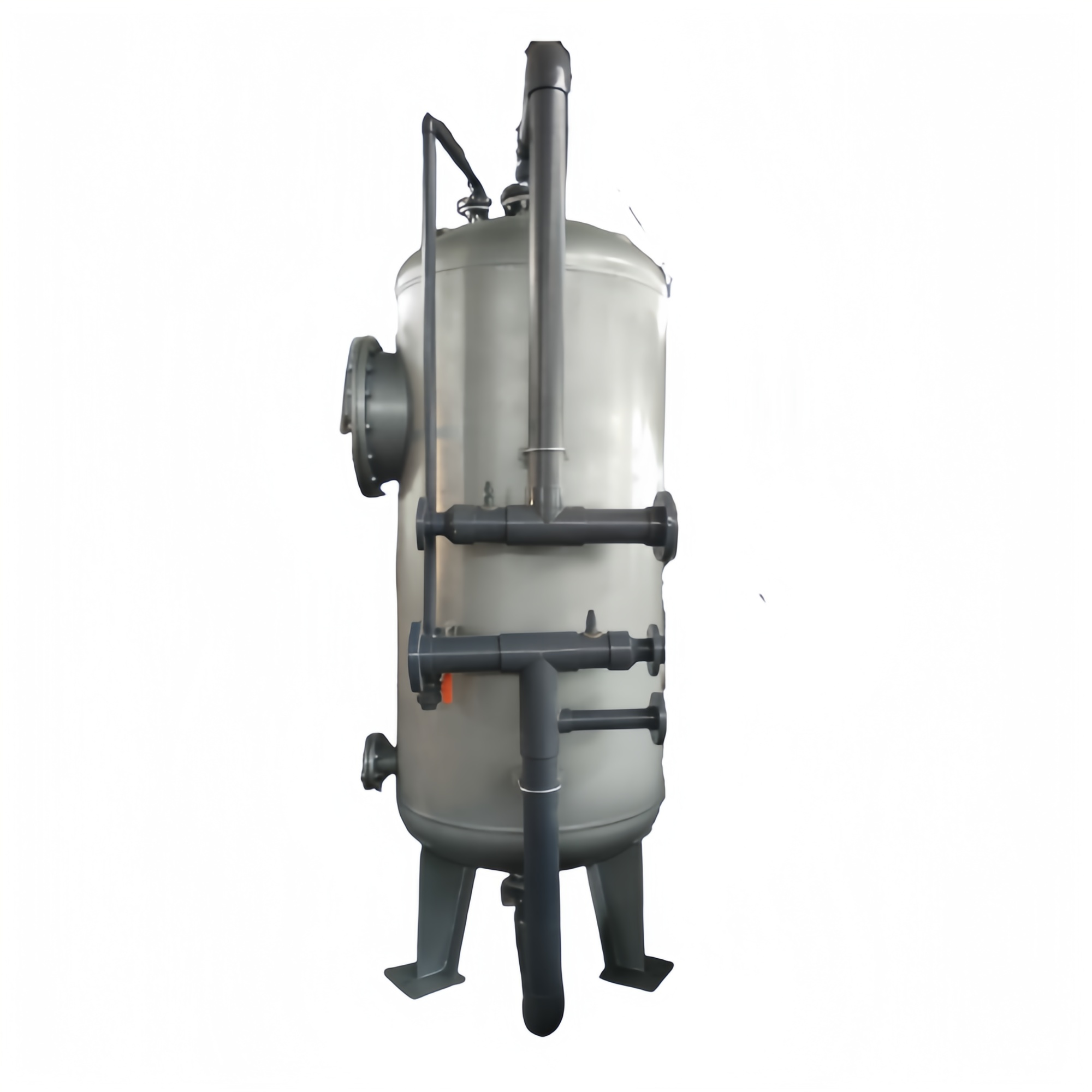

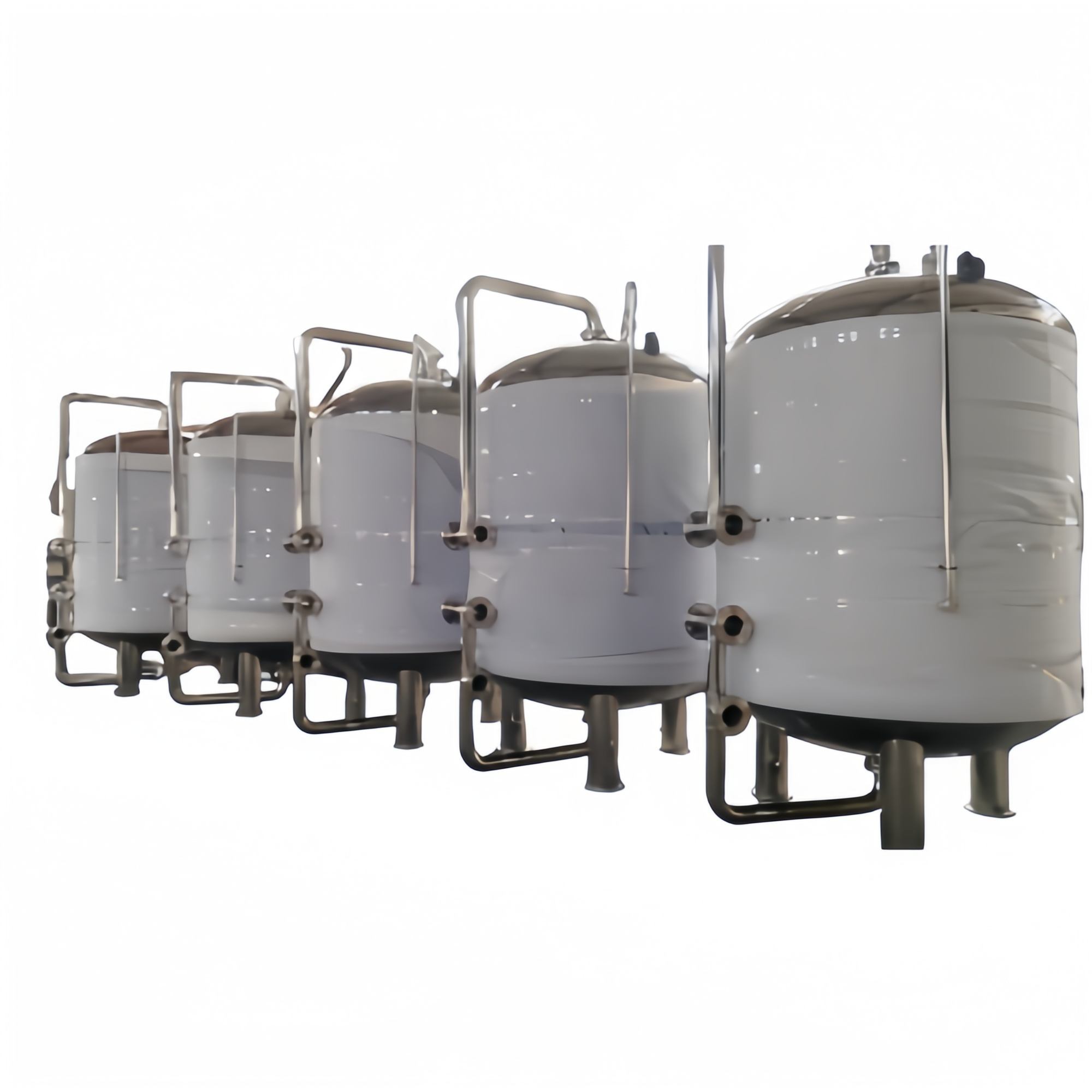

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DZ-1800 | — | — |
| Total Capacity | Refer to the specification in the price list | m3/h | — |
| Material | SS304 | — | — |
| Working pressure | 0.2-0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | 70 | ℃ | — |
| Dimensions (LWH) | 2000*2000*3300 | mm | — |
| Total Weight | ~1075 | kg | — |
Tank Body
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Upper Distributor Material | SS304 | — | — |
| Lower Distributor Material | SS304 | — | — |
| Manhole Size | DN450 | — | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet Pipe | 4' | — | See drawing |
| Outlet Pipe | 4' | — | See drawing |
| Vent Pipe | DN200 | — | See drawing |
| Backwash Drain Pipe | 1' | — | See drawing |
| Flange Connection Standard | See drawing | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | NO/PLC | — | — |
| Valve | No Valve | — | — |
Price
$5220
per set
