SS304-1500-Belt Type Press
Basic Information
Model
JXYA-1500
Unit
set
Category
Filter press
Delivery Time
30 Days
Package Size
4300x1900x1950 mm
Package Weight
6620 KG

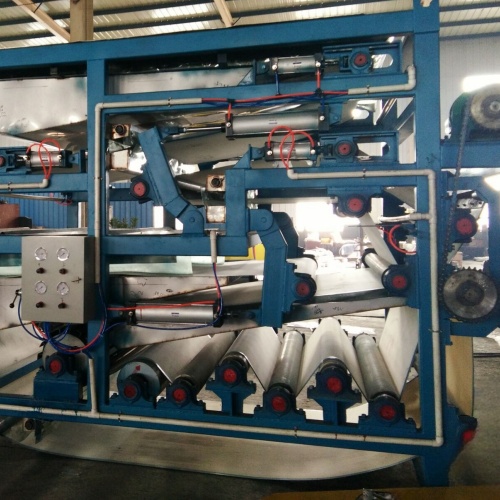

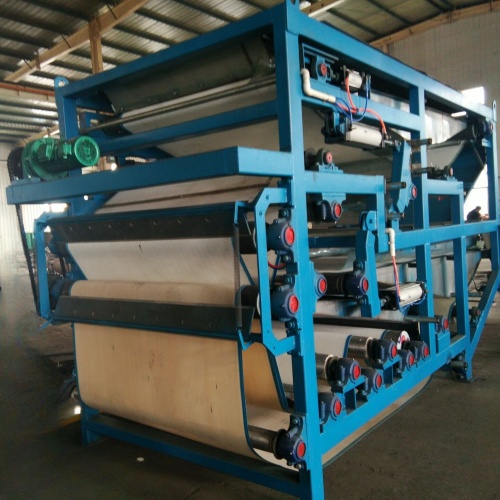

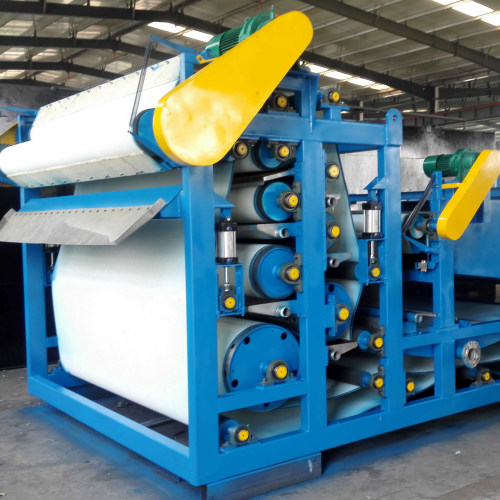

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Quantity | 1 | unit | — |
| Concentration Section Belt Width | 1500 | mm | — |
| Pressure Section Belt Width | 1500 | mm | — |
| Inlet Content | 6~8 | g/L | — |
| pH | 6-9 | — | — |
| Filter Cake Dryness after Pressure Filtration | ≤80% (W/W) | — | — |
| Dosing Amount vs. Sludge Dry Solids Ratio | 0.3%-0.5% | — | — |
| Processing Capacity | 20-30 | m³/h | — |
| Effective Filtration Area of Filter Belt | 32.7 | ㎡ | — |
| Weight of Sludge Dewatering Machine | Approximately 5200Kg | Kg | — |
| Dimensions | As shown in the drawings | — | — |
| Single Machine Solid Load | 300~700 | Kg.DS/h | — |
| Single Machine Hydraulic Load | 10-30 | m³/h | — |
| Design Working Time | 24 | h/d | — |
| Filter Belt Speed: Concentration Section | 4~20 | m/min | — |
| Pressure Section | 1.3~7.8 | m/min | — |
| Filter Cloth Strength | >150 | N/cm | — |
| Filter Cloth Type | Woven Mesh | — | — |
| Motor Power | 3.3 | KW | — |
| Main Drive Motor | Concentration Section: 1.1 | KW | — |
| Pressure Section | 2.2 | KW | — |
| Power Supply | Insulation Class: F | — | as per customer requirements |
Main Component Materials
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Concentration Section Frame | Galvanised Steel | — | — |
| Pressure Section Frame | Galvanised Steel | — | — |
| Sludge Distributor | Stainless Steel (AISI304) | — | — |
| Pre-Pressure Shaft Roller | Stainless Steel (AISI304) Multi-hole Roller | — | — |
| Pressure Shaft Roller and Guide Shaft Roller | High-quality Seamless Carbon Steel Pipe, Surface Wrapped with 2mm Thick Stainless Steel, Pipe Wall Thickness ≥8mm | — | — |
| Tension&Alignment Rollers, and Drive Rollers | Seamless Steel Pipe (Surface Not Less Than 8mm, Chloroprene Rubber Lining) | — | — |
| Filtrate Collection Tray | Stainless Steel (AISI304) | — | — |
| Flush Water Pipe and Nozzles | Stainless Steel (AISI304) + UPVC | — | — |
| Scraper Plates | High-strength, Wear-resistant High Molecular Weight PE | — | — |
| Electrical Components | Schneider | — | — |
| Inverter | Schneider | — | — |
| Main Drive Reducer | Zhejiang Beili | — | — |
| Bearings | NSK (Japan) | — | — |
| Inductive Proximity Switches | TURCK (Germany) | — | — |
Price
$25000
per set
