SS304-15-Air flotation machine
Basic Information
Model
JX-QF-15-SS304
Unit
set
Category
DAF
Delivery Time
30 Days
Package Size
4600x1600x2700 mm
Package Weight
5000 KG

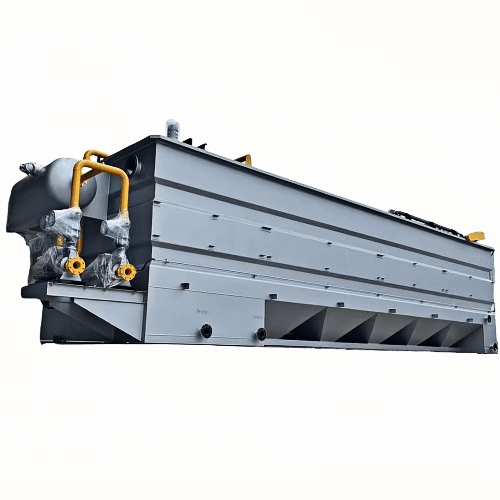

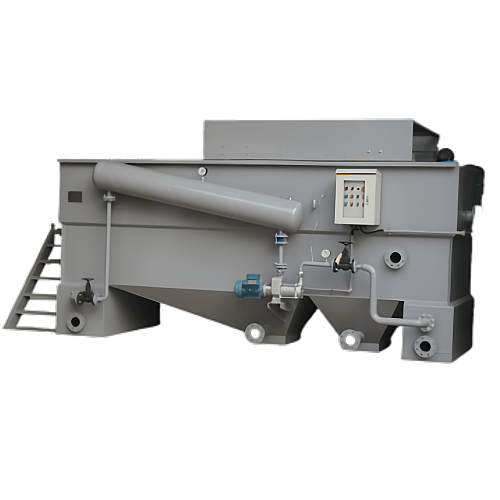

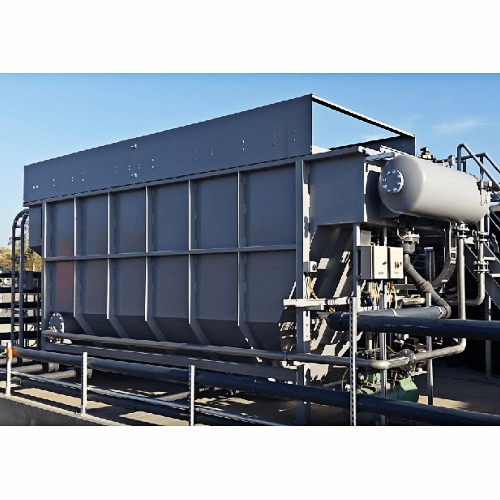

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-QF-15 | — | — |
| Material | SS304 | — | — |
| Capacity | 15 | m3/h | — |
| Power | / | KW | — |
| Power Supply | 380V/220V, Customizable | — | — |
Air Flotation system parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dissolved Air Pressure | 0.3-0.5 | Mpa | — |
| Dissolved Air Efficiency | >90% | % | — |
| Dissolved Air Tank | Included | Set | — |
| Pump | 6m³ | Unit | H=50m |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN100 | Set | — |
| Outlet | DN100 | Set | — |
| Drain Port | DN80 | Set | — |
| Sludge Discharge Port | DN150 | Set | — |
| Air Source | / | m³/min | — |
