SS304-1200*2000-Internally Fed Rotary Drum Screen
Basic Information
Model
JXN-1200*2000-SS304
Unit
set
Category
1200-Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
3200x1950x2300 mm
Package Weight
3100 KG

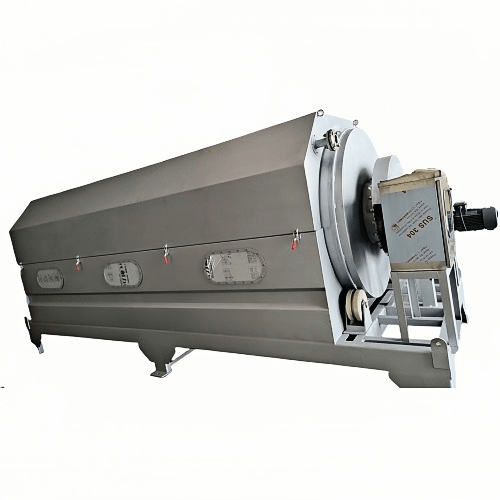

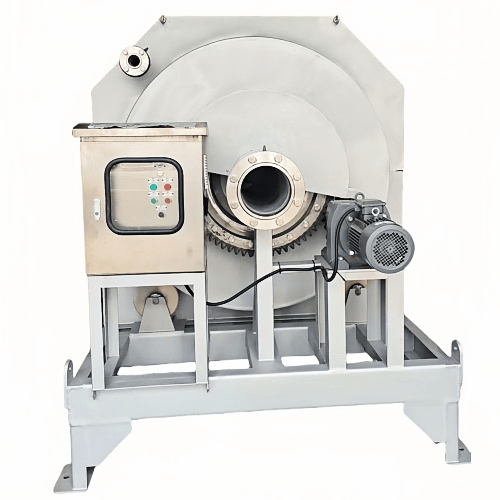

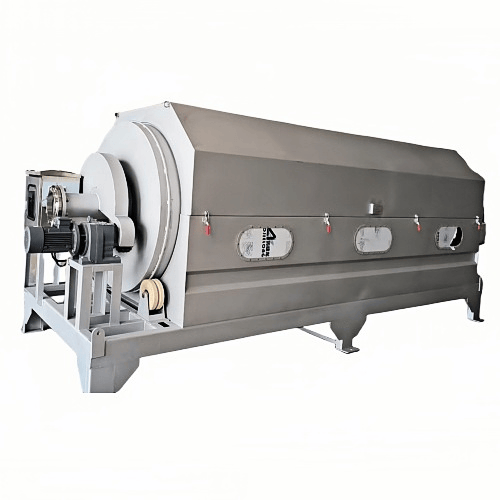

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JXN-1200 | mm | — |
| Size | Ф1200*2000 | mm | — |
| Filtering area | 7.54 | m2 | — |
| Teatment capacity | Refer to the specification in the price list | m3/h | — |
| Main Material | SS304 | — | — |
| Equipment Weight | 2680 | KG | — |
| Installation Size | 3100*1860*2200 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Type | Wedge | — | Perforated, Wedge, Woven, Sintered |
| Filter Precision | Customizable | mm | — |
| Filter Material | SS304 | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Automatic/Manual | — | — |
| Power | 2.2 | KW | — |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | 6 | r/min | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN250 | — | As per customer drawing |
| Outlet | DN300 | — | As per customer drawing |
| Backwash cleaning pipe | DN40 | — | — |
Price
$11470
per set
