SS304-12-Tubular Filter
Basic Information
Model
JX-FHL-12-SS304
Unit
set
Category
Tubular Filter
Delivery Time
30 Days
Package Size
2250x1400x1850 mm
Package Weight
450 KG

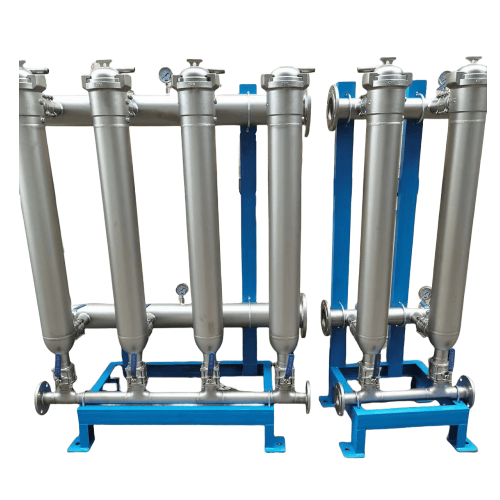

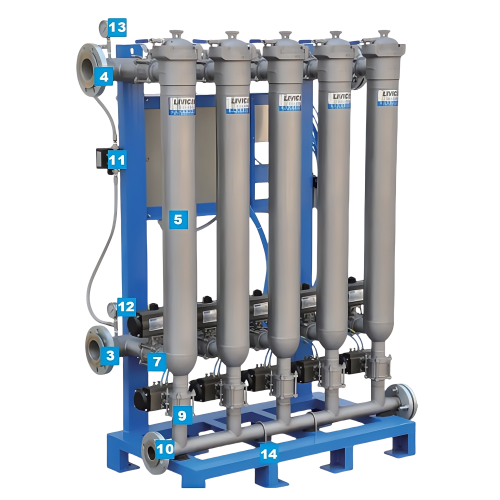

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-FHL-12 | — | — |
| Processing Capacity | ~275 | m3/h | — |
| Material | SS304 | — | — |
| Hydraulic Loss | <0.01 (Under clean conditions) | Mpa | — |
| Pressure Test | 1.25 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | ≤70℃ | ℃ | — |
| Dimensions (LWH) | ~2000*1300*1750 | mm | — |
| Total Weight | ~430 | kg | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Screen Material | SS316 | — | Wedge wire screen |
| Filtration Accuracy | Customized | um | — |
| Screen Quantity | 12 | pcs | Each filter has a filtration area of 0.267 square meters |
Control Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Rated Power | 0.5 | KW | Total power of the electrical control cabinet |
| Rated Voltage | 220/50HZ | V | — |
| Control System | Siemens PLC control system with 7-inch touch screen | — | — |
| Control Mode | Differential pressure control | — | — |
| Control Method | Pneumatic | — | — |
Pipeline Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN200/Customized | — | See drawing |
| Outlet | DN200/Customized | — | See drawing |
| Drain Port | DN50/Customized | — | See drawing |
| Flange Connection Standard | ANSI/DIN、SO/RF | — | See drawing |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Bolt Material | 304 Stainless Steel, A2-70 | — | — |
| Solenoid Valve | AIRTAC or equivalent | — | — |
| Ball Valve | Shanghai Zhaosen brand or equivalent | — | — |
| Differential Pressure Transmitter | Shanghai brand/Legend or equivalent | — | — |
