SS304-1000-Sand Filter
Basic Information
Model
JX-DZ-1000
Unit
set
Category
Sand Filter
Delivery Time
30 Days
Package Size
1600x1100x2850 mm
Package Weight
600 KG

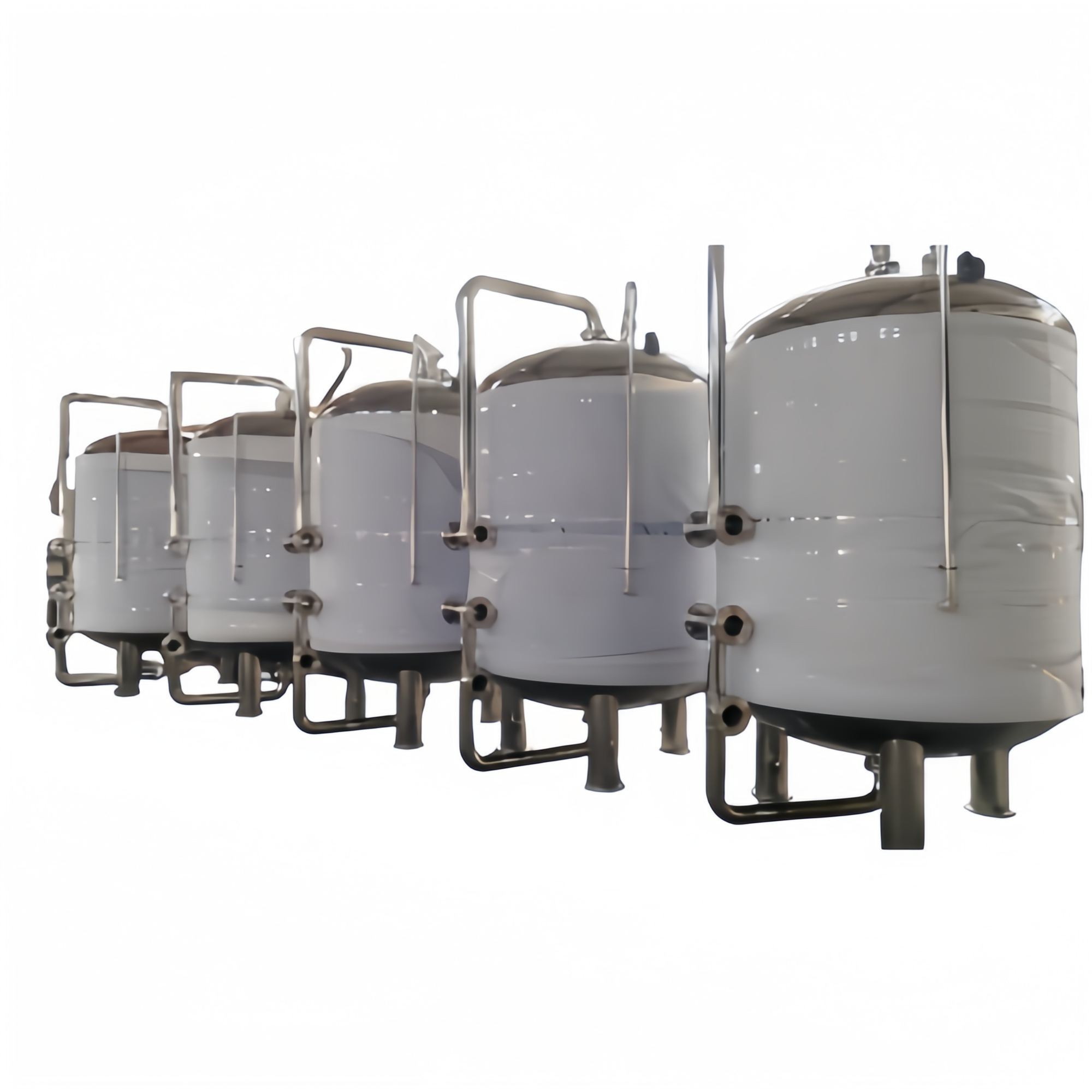

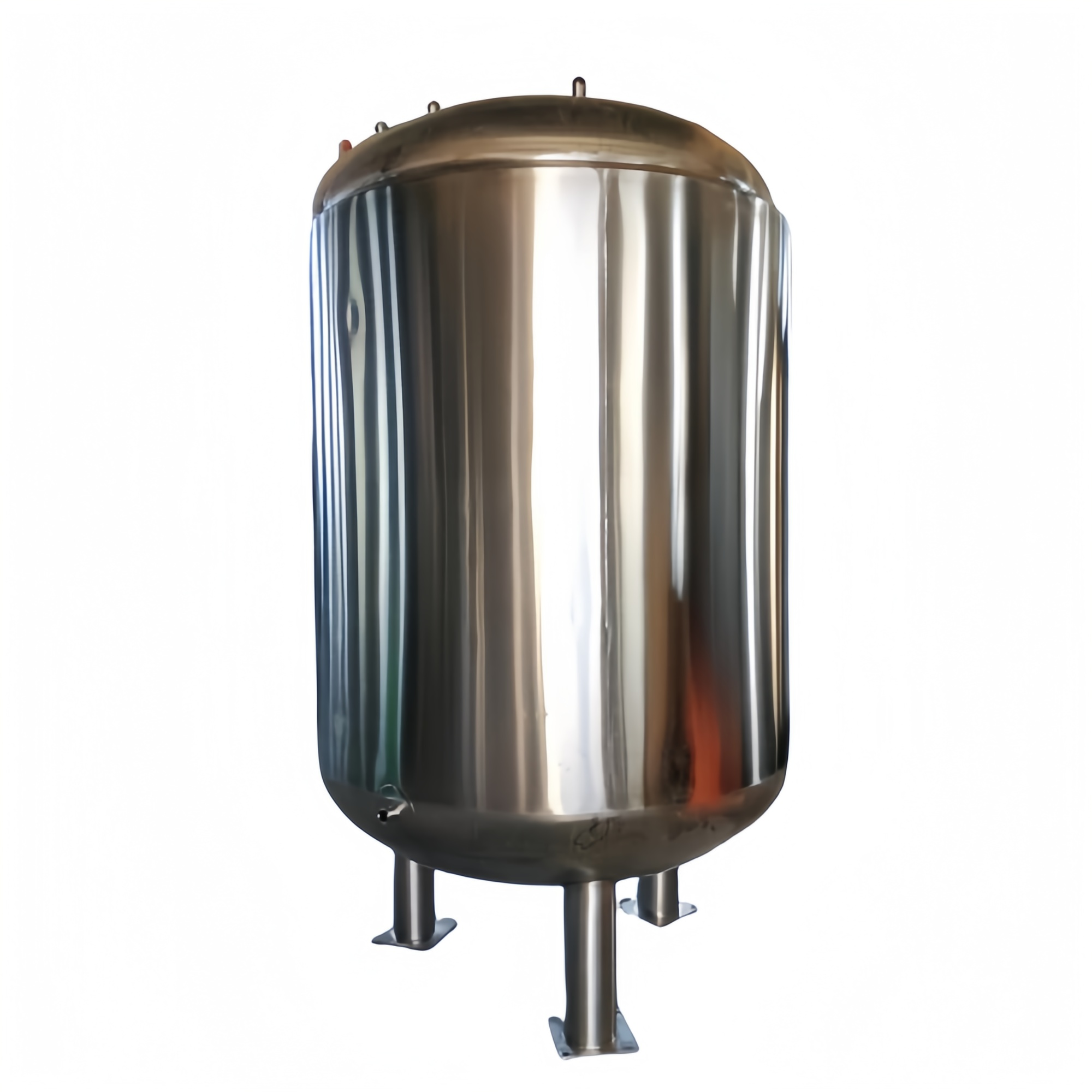

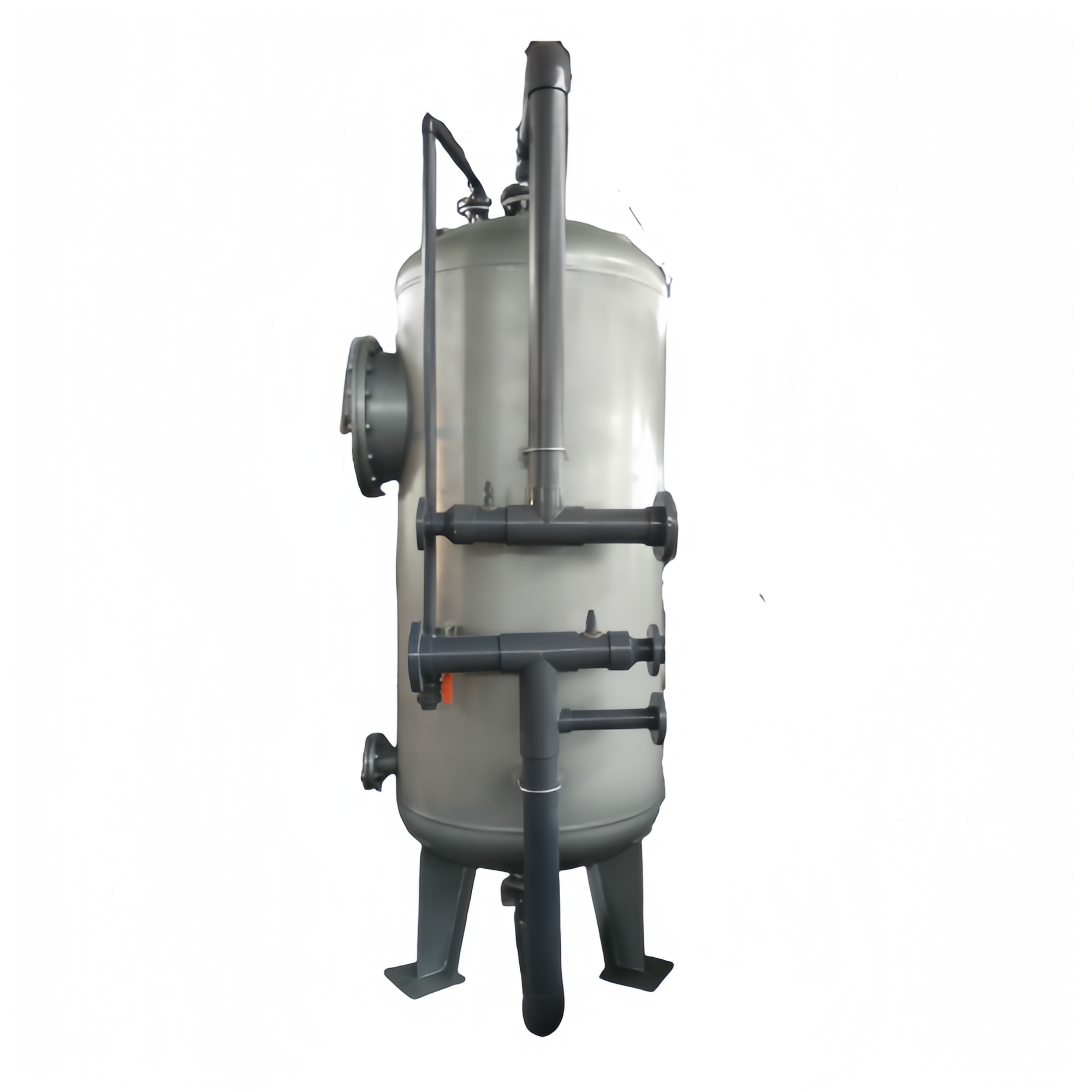

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-DZ-1000 | — | — |
| Total Capacity | Refer to the specification in the price list | m3/h | — |
| Material | SS304 | — | — |
| Working pressure | 0.2-0.6 | Mpa | — |
| Design Pressure | 1.0 | Mpa | — |
| Operating Temperature | <70℃ | ℃ | — |
| Dimensions (LWH) | See drawing | mm | — |
| Total Weight | ~1000 | kg | — |
Tank Body
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Upper Distributor Material | SS304 | — | — |
| Lower Distributor Material | SS304 | — | — |
| Manhole Size | DN400 | — | — |
Pipe Size
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet Pipe | See drawing | — | — |
| Outlet Pipe | See drawing | — | — |
| Vent Pipe | See drawing | — | — |
| Backwash Drain Pipe | See drawing | — | — |
| Flange Connection Standard | See drawing | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Method | Pressure Difference/ PLC/NO | — | — |
| Valve | NO | — | — |
Price
$2890
per set
