SS304-1000-Belt Type Press
Basic Information
Model
JX-YA-1000-304
Unit
set
Category
Belt Filter Press
Delivery Time
30 Days
Package Size
4300x1900x1950 mm
Package Weight
6000 KG

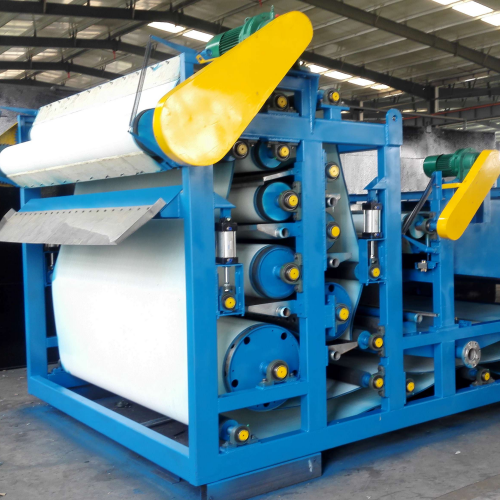

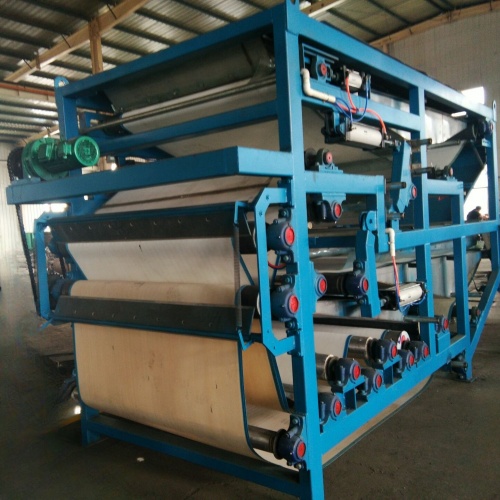

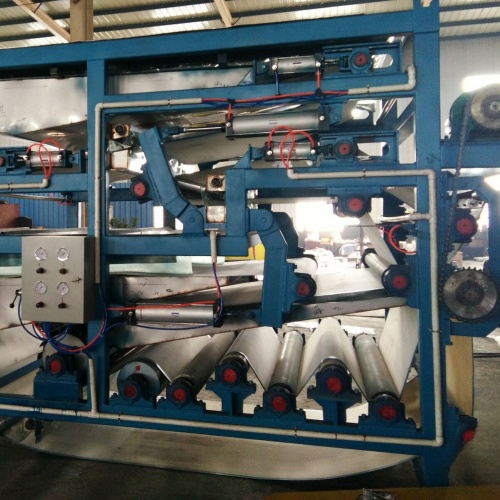

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-YA-1000 | — | — |
| Bandwidth | 1000 | mm | — |
| Processing Capacity | ~7-10 | m³/h | — |
| Filter Belt Flushing Water Pressure | 0.4-0.5 | Mpa | — |
| Tension Air Pressure | 0.25 | Mpa | — |
| Filter Belt Speed | 3.0-20 | m/min | — |
| Feed Moisture Content | ≈99 | % | — |
| Filter Cake Moisture Content | ≤85 | % | — |
| Dimensions | See drawing | mm | — |
Structural Composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Main Material | SS304 | — | — |
| Frame | Carbon steel or stainless steel | — | — |
| Filter Belt | Polyester nylon, polyester monofilament | — | — |
| Cylinder | Assembly | — | — |
| Correction Device | Mechanical valve | — | — |
| Cleaning Device | Flushing pipes, nozzles, and pumps | — | — |
| Other Configurations | Assembly | — | — |
Drive Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | PLC, frequency converter, pneumatic control cabinet | — | — |
| Host Power | 1.5+0.75 | KW | Main Drive Motor：Concentration Section 0.75KW Pressure Section：1.5KW |
Price
$23330
per set
