SS304-10㎡-Scraper Discharge Vacuum Drum Filter
Basic Information
Model
JX-G10
Unit
set
Category
Scraper Discharge Vacuum Drum Filter
Delivery Time
30 Days
Package Size
5850x2290x2350 mm
Package Weight
7020 KG

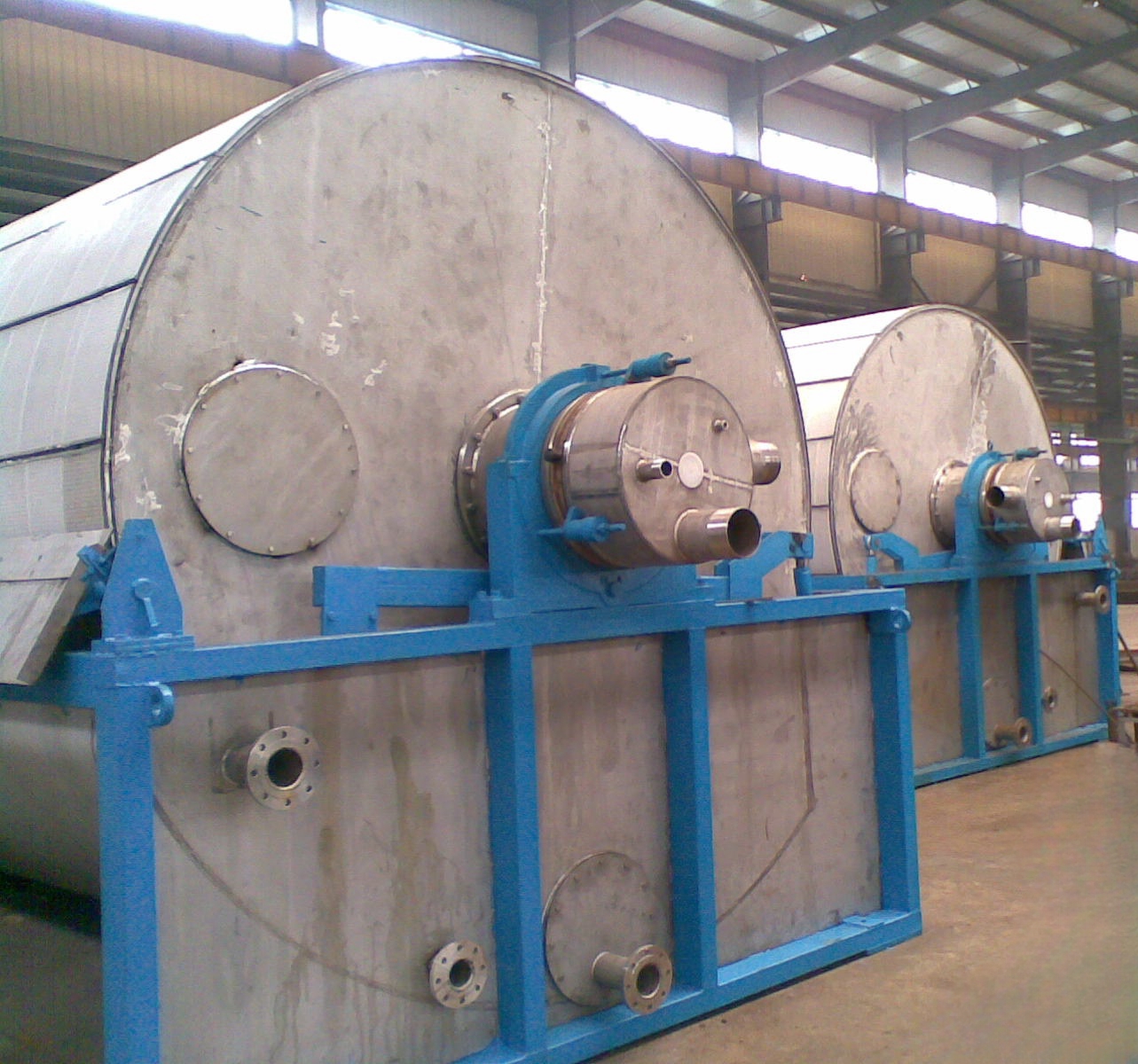

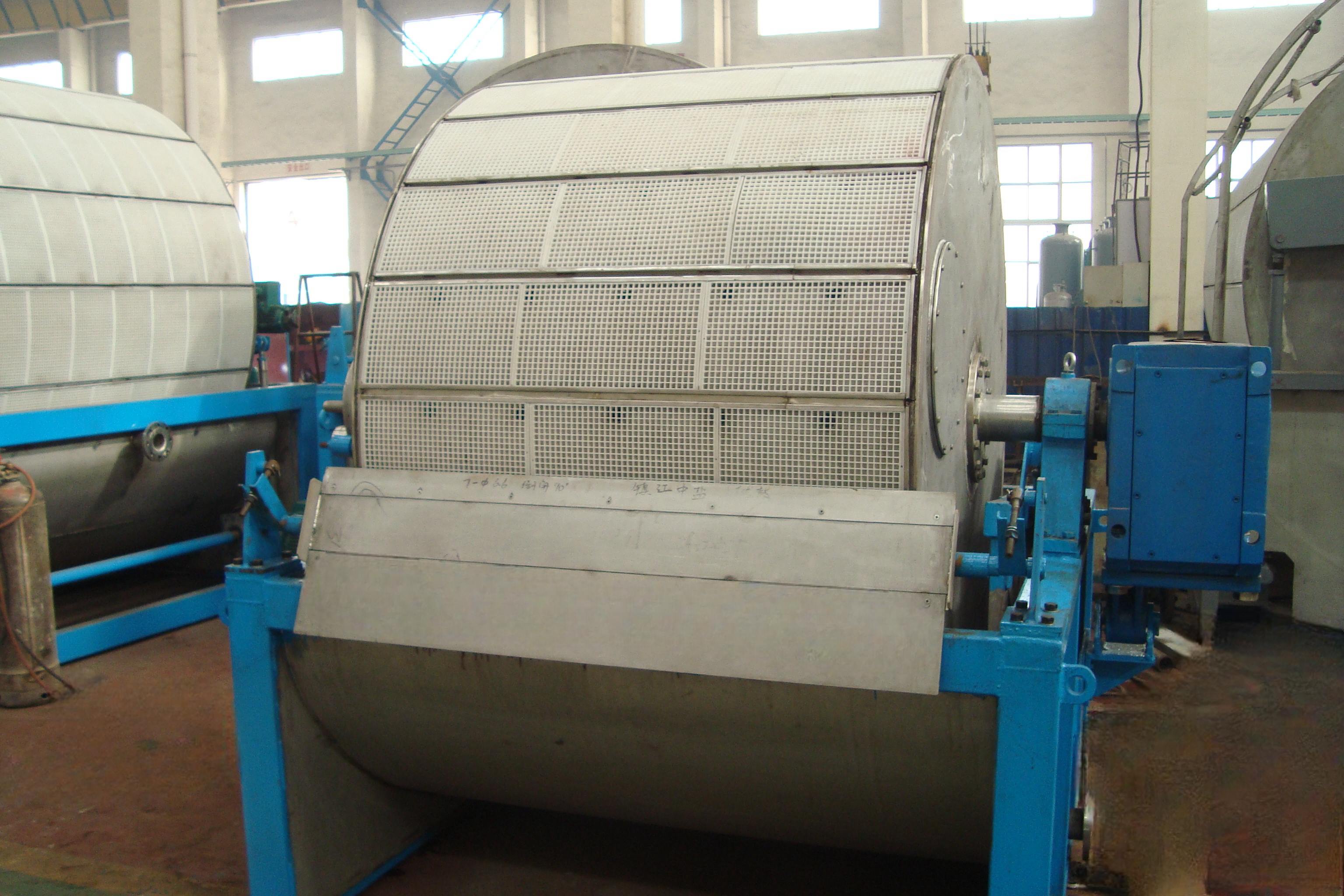

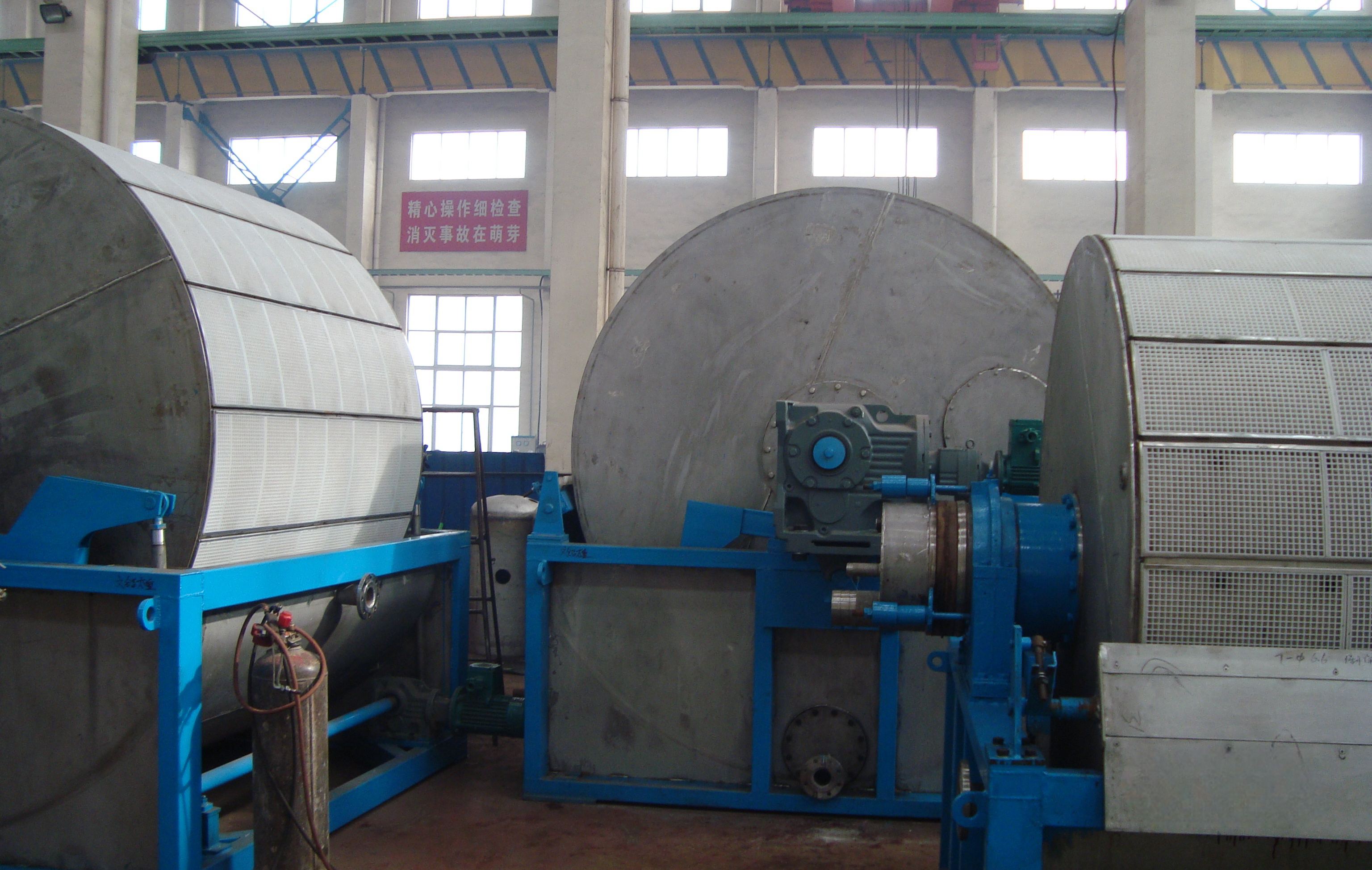

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G10 | — | — |
| Vacuum Drum | 1 | — | — |
| Vacuum Pump | 1 | — | — |
| Gas-Liquid Separator | 1 | — | — |
| Pre-coating Tank | / | — | — |
| Control Cabinet | 1 | — | — |
Filter machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 10 | m2 | — |
| Effective Width of Filtration Surface | 1830 | mm | — |
| Drum Diameter | 1800 | mm | — |
| Drum Speed | 0.13~3 | r/min | (Variable Frequency) |
| Main Motor Power | 1.5 | — | (Variable Frequency) |
| Gas Distributor Material | Phenolic laminate/PP | — | — |
| Storage Tank | SS304 | — | — |
| Drum Body | SS304 | — | — |
| Scraper | PP | — | — |
| Filter Cloth | 750B, PP | — | — |
Gas-liquid separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 600 | mm | — |
| Drainage Capacity | 10 | m³/h | — |
| Operating Pressure | ≤-0.09 MPa | — | — |
Vacuum pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 2BV | — | Cast Steel Housing, Stainless Steel 304 Impeller |
| Motor Power | 11 | kw | — |
Electrical control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Siemens or Schneider | — | — |
| Reducer | Well-known Chinese brand | — | — |
| Motor | Well-known Chinese brand | — | — |
Price
$58500
per set
