SS304-1+40-Cartidge Filter Housing
Basic Information
Model
JX-HPCF-1-SS304
Unit
set
Category
Cartridge Filter Housing
Delivery Time
30 Days
Package Size
550x350x1550 mm
Package Weight
100 KG

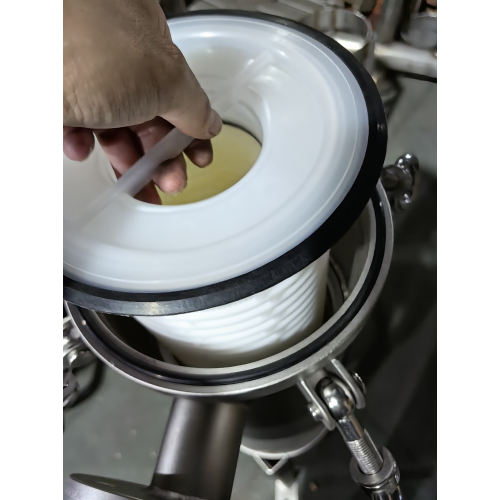

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | JX-HPCF-1 | — | — |
| Operating Flow Rate | Customizable | m3/h | — |
| Design Pressure | 1.0 | MPa | — |
| Pressure Test | 1.25 | MPa | — |
| Hydraulic Loss | <0.01 | MPa | Clean condition |
| Maximum Pressure Loss | 0.08 | MPa | — |
| Housing Material | SS304 | — | — |
| Number of Units | 1 | — | — |

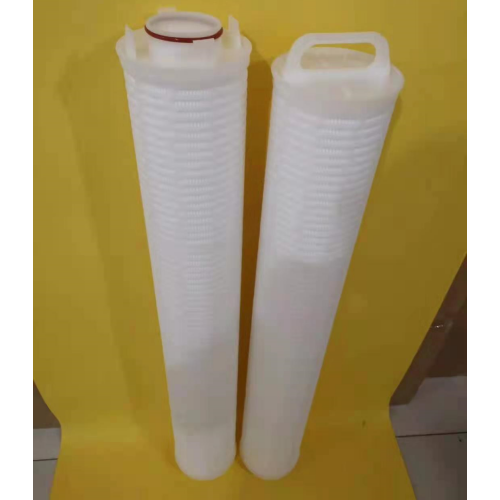

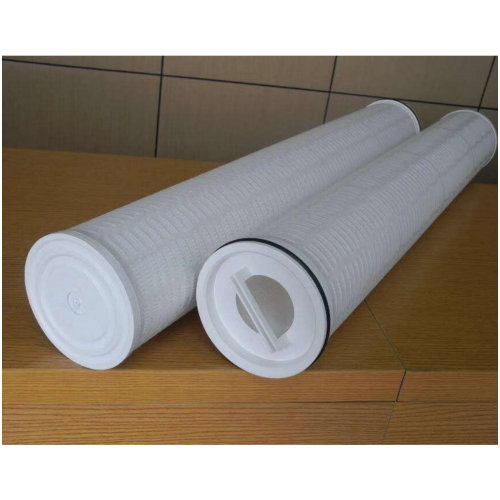

Filter screen
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | PP | — | — |
| Filter Precision | Customizable | μm | — |
| Number of Filter Cores | 1 | pcs | 40" |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flange Connection Size | See drawing | — | — |
| Drainage Port | See drawing | — | — |
| Bolt Material | SS304 | — | — |
