SS304-0.5m²-Pre-coating Vacuum Drum Filter
Basic Information
Model
JX-GF0.5-SS304
Unit
set
Category
Pre-coating Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2900x1600x1700 mm
Package Weight
445 KG

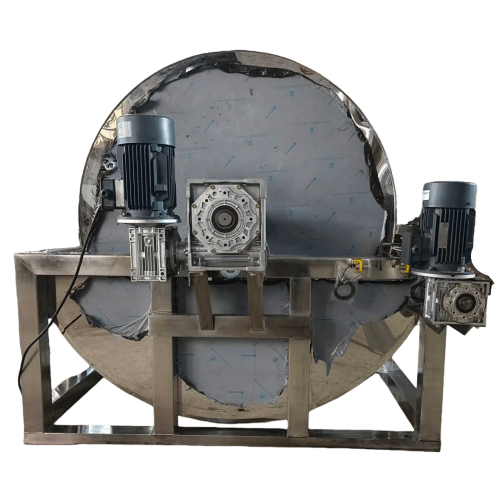

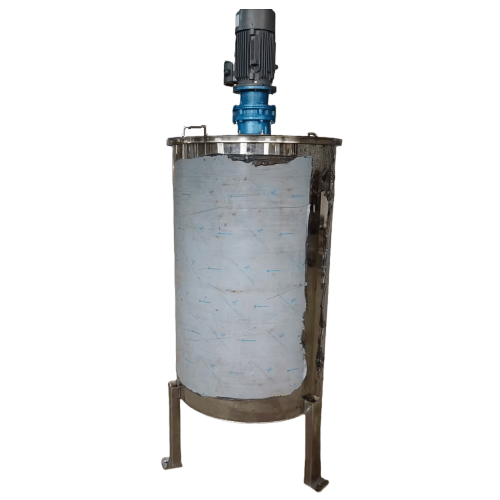

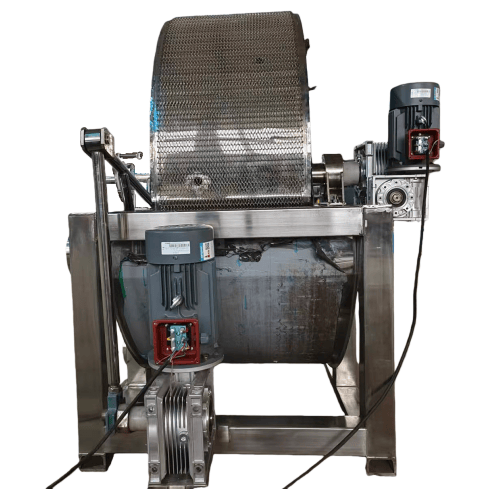

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF0.5 | — | — |
| Material | SS304 | — | — |
| Filtration Area | 0.5 | m2 | — |
| Drum Diameter | 400 | mm | — |
| Drum Rotation Speed | 0.2-1.6 | r/min | — |
| Filter Surface Effective Width | 400 | mm | — |
| Agitation Frequency | 20 | times/min | — |
| Operating Vacuum | -0.035~-0.65 | Mpa | — |
| Main Motor Power | 0.12 | KW | — |
| Filter Cloth | PP | — | 750B |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | DN400 | mm | — |
| Discharge Capacity | Customer Demand | m³/h | — |
| Operating Pressure | ≤0.1 MPa | MPa | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1 | — | — |
| Motor Power | 0.12 | KW | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | Made in China | — | — |
| Reduction Gear | China's famous brand | — | — |
| Motor | China's famous brand | — | — |
