SS2205-24"-Water Intake Screen
Basic Information
Model
JX-IS-24
Unit
set
Category
Water Intake Screen
Delivery Time
30 Days
Package Size
2350x850x1220 mm
Package Weight
430 KG

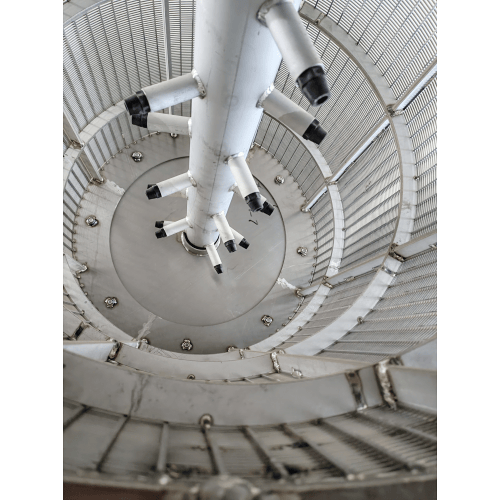

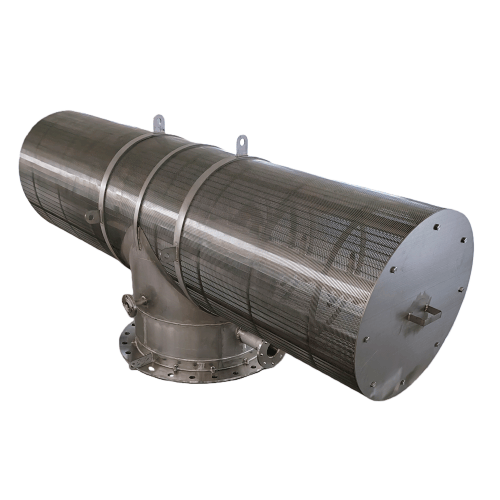

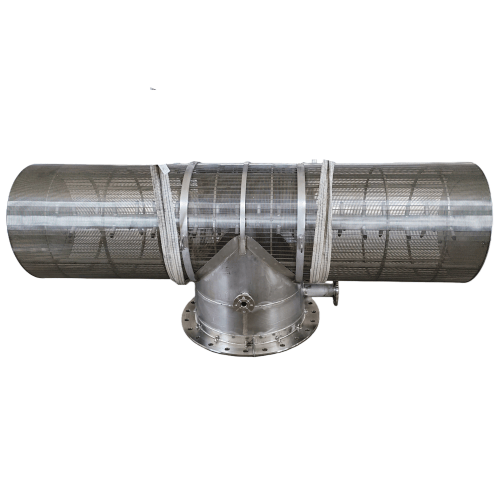

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Precision | 3 | mm | — |
| Operating Flow Rate | ~1300 | m3/h | — |
| Material | SS2205 | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Water Inlet | DN600 | — | — |
| Backwash Water Inlet | DN80 | — | — |
| Backwash Air Inlet | DN50 | — | — |
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Precision | mm | — | |
| Operating Flow Rate | m3/h | — | |
| Flange connection | — | — |
Other parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Length | — | — | |
| width | — | — | |
| Motor power | — | — |
Material of Construction
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Body | — | — | |
| Filtering element | — | — | |
| Fastening | — | — | |
| Gasket | — | — |
Price
$13016
per set
