PP-5㎡-Vacuum Drum Filter
Basic Information
Model
JX-G5-PP
Unit
set
Category
Scraper Discharge Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2480x2350x2160 mm
Package Weight
4054 KG

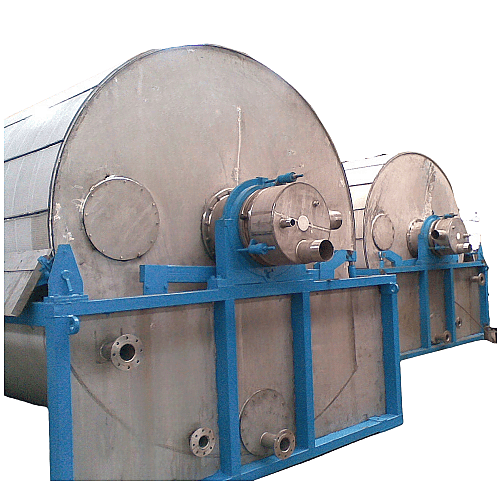

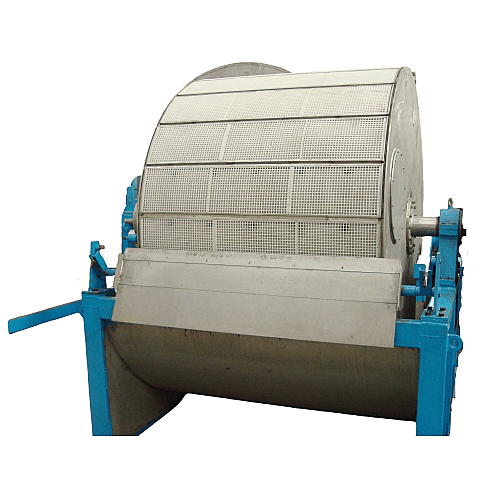

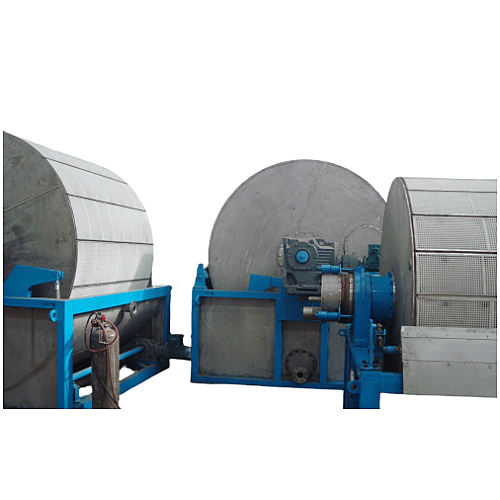

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G5 | — | — |
| Vacuum Drum | 1 | — | — |
| Vacuum Pump | 1 | — | — |
| Gas-Liquid Separator | 1 | — | SS316 |
| Pre-coating Tank | / | — | — |
| Control Cabinet | 1 | — | — |
Filter machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 5 | m2 | — |
| Effective Width of Filtration Surface | 900 | mm | — |
| Drum Diameter | 1830 | mm | — |
| Drum Speed | 0.13-3.0 | r/min | Frequency control |
| Main Motor Power | 1.5 | — | Frequency control |
| Gas Distributor Material | Phenolic laminate/PP | — | — |
| Storage Tank | PP | — | — |
| Drum Body | PP | — | — |
| Scraper | PP | — | — |
| Filter Cloth | PP | — | 750B |
Gas-liquid separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 600 | mm | — |
| Drainage Capacity | 15 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | — | — |
Vacuum pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | / | mm | — |
| Motor Power | 1.1 | kw | — |
Electrical control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Siemens or Siemens | — | — |
| Reducer | Well-known Chinese brand | — | — |
| Motor | Well-known Chinese brand | — | — |
Price
$40500
per set
