PP-5㎡-Pre-coating Vacuum Drum Filter
Basic Information
Model
JX-GF5-PP
Unit
set
Category
Pre-coating Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2000x2450x1450 mm
Package Weight
642 KG

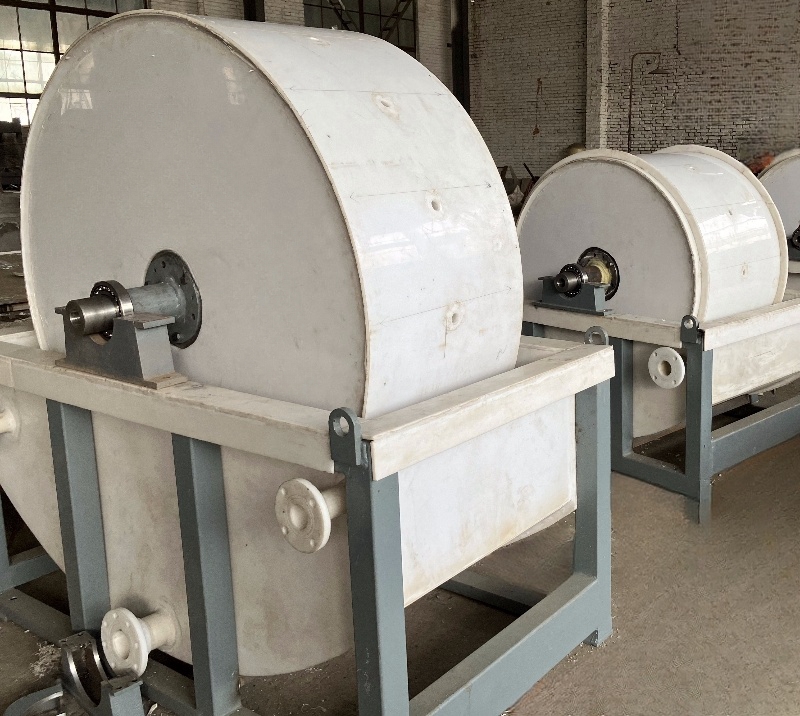

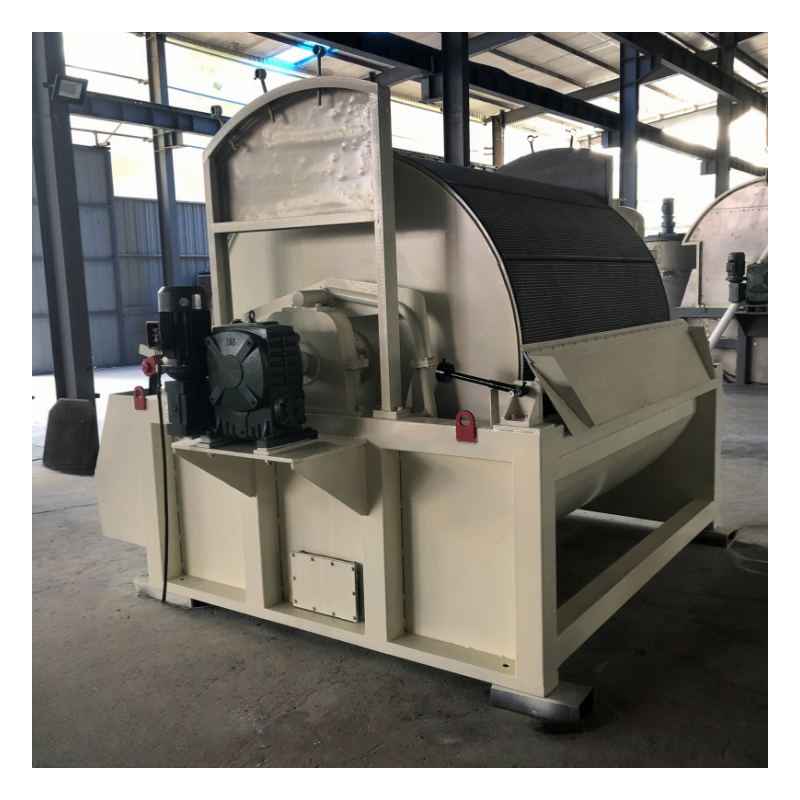

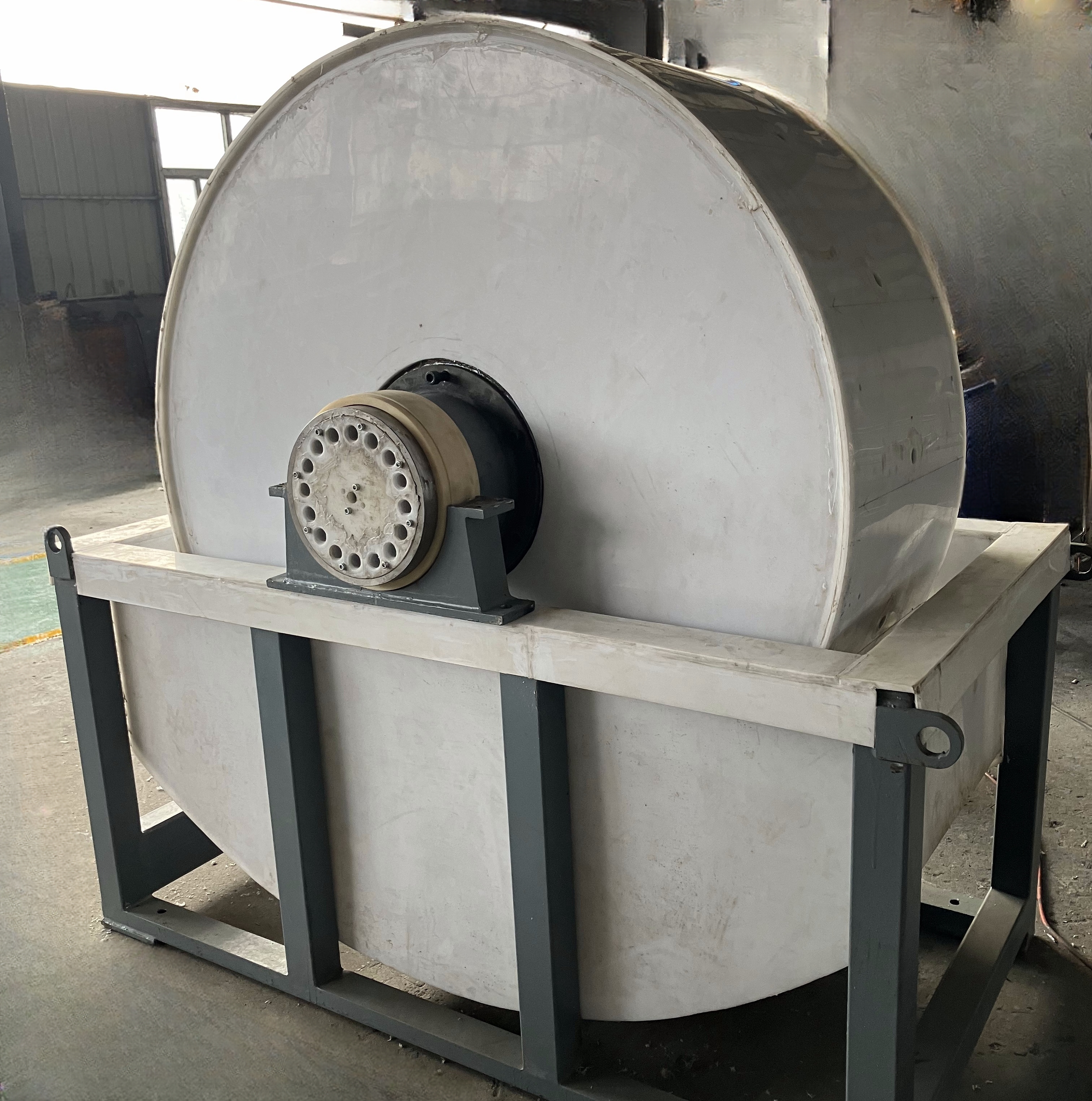

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GF5 | — | — |
| Material | PP | — | — |
| Filtration Area | 5 | m2 | — |
| Drum Diameter | 1300 | mm | — |
| Drum Rotation Speed | 0.13~3.00 | r/min | — |
| Operating Vacuum | 8 | Mpa | — |
| Filter Surface Effective Width | 1200 | mm | — |
| Agitation Frequency | 20 | times/min | — |
| Main Motor Power | 0.75 | KW | — |
| Filter Cloth | 750B, PP | — | 2 PCS |
Gas-Liquid Separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 600 | mm | — |
| Discharge Capacity | 15 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | MPa | — |
Vacuum Pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | / | — | — |
| Motor Power | 1.1 | KW | — |
Electrical Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | Chinese brand | — | — |
| Reduction Gear | Well-known Chinese brand | — | — |
| Motor | Well-known Chinese brand | — | — |
Price
$445500
per set
