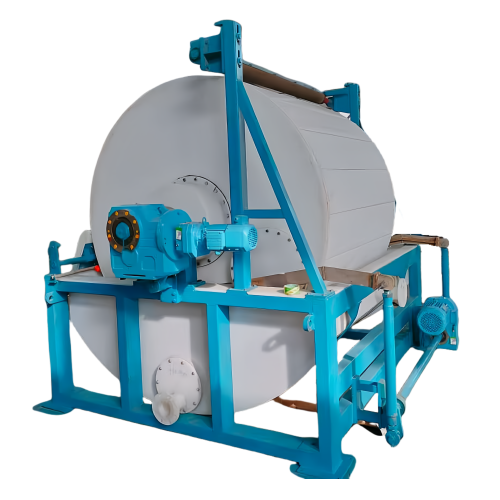

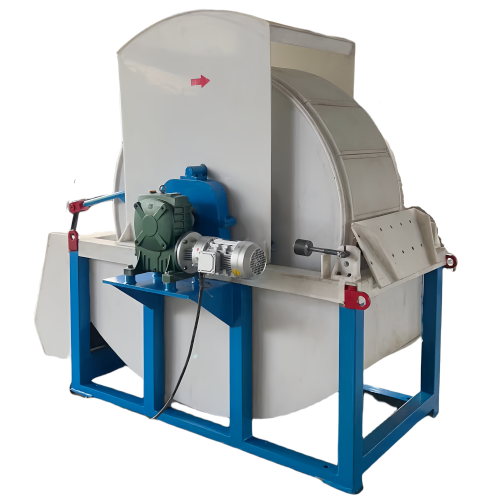

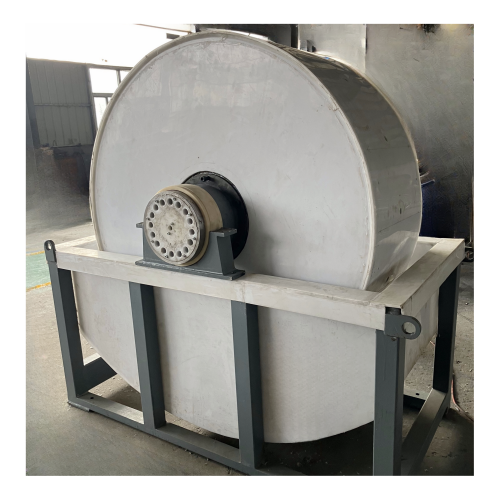

PP-3m²-Scraper Discharge Vacuum Drum Filter
Basic Information
Model
JX-G3-PP
Unit
set
Category
Scraper Discharge Vacuum Drum Filter
Delivery Time
30 Days
Package Size
2100x2130x2300 mm
Package Weight
2400 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-G3 | — | — |
| Vacuum Drum | 1 | — | — |
| Vacuum Pump | 1 | — | — |
| Gas-Liquid Separator | 1 | — | — |
| Pre-coating Tank | / | — | — |
| Control Cabinet | 1 | — | — |
Filter machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filtration Area | 3 | m2 | — |
| Effective Width of Filtration Surface | 800 | mm | — |
| Drum Diameter | 1200 | mm | — |
| Drum Speed | 0.13-1.00 | r/min | Frequency control |
| Main Motor Power | 1.1 | — | Frequency control |
| Gas Distributor Material | Phenolic laminate/PP | — | — |
| Storage Tank | PP | — | — |
| Drum Body | PP | — | — |
| Scraper | PP | — | — |
| Filter Cloth | 750B, PP | — | — |
Gas-liquid separator
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Nominal Diameter | 500 | mm | PP |
| Drainage Capacity | 5 | m³/h | — |
| Operating Pressure | ≤-0.09MPa | — | — |
Vacuum pump
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Vacuum Pump | 1（2BV2071） | — | CS (Impeller: SS316) |
| Motor Power | 7.5 | kw | — |
Electrical control cabinet
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | Chinese brand | — | — |
| Reducer | Well-known Chinese brand | — | — |
| Motor | Well-known Chinese brand | — | — |
Price
$28500
per set
