Internally Fed Rotary Drum Screen
Basic Information
Model
JX-NY-DN500
Unit
set
Category
Farming - Internally Fed Rotary Drum Screen
Delivery Time
30 Days
Package Size
4600x2100x2350 mm
Package Weight
8500 KG

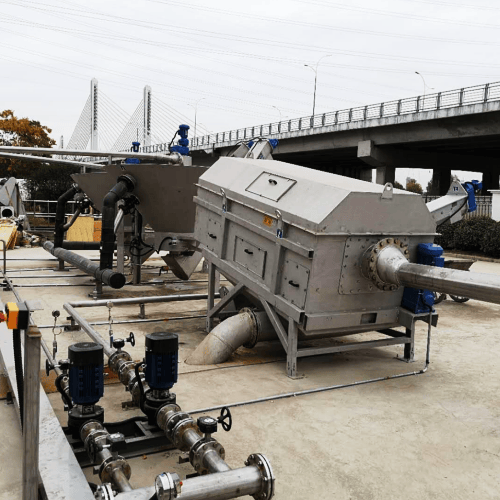

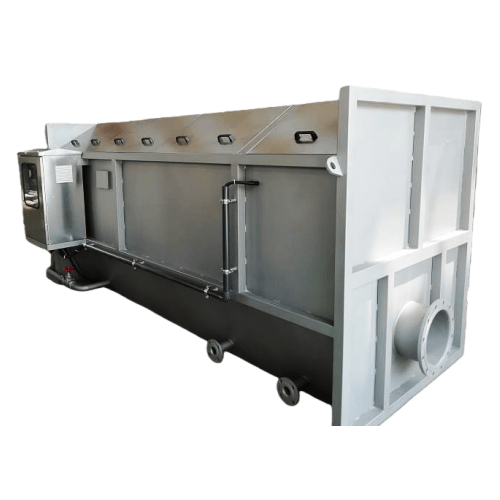

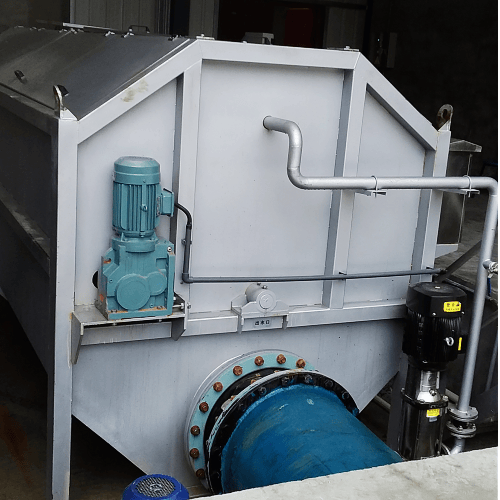

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-NY-500 | mm | — |
| Teatment capacity | Customizable | m3/h | — |
| Size | 1600*3000 | mm | — |
| Filtering area | 15.1 | m2 | — |
| Main Material | SS304 | — | — |
| Equipment Weight | ~3600 | KG | — |
| Installation Size | 4500*2000*2250 | mm | — |
Filtration Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Precision | Customizable | um | — |
| Filter Material | SS304 | — | — |
| Filter Type | Woven | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Electrical control Cabinet | — | Siemens Beda |
| Power | 2.2 | KW | The power of the flushing pump is 7.5 kilowatts. |
| Rated Voltage | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Rotation Speed | Chain drive or variable speed gears | — | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN500 | — | Includes flange connections |
| Outlet | DN600 | — | Includes flange connections |
| Backwash cleaning pipe | DN80 | — | Includes flange connections |
Price
$41270
per set
