Crusher and Press Machine
Basic Information
Model
JXLZ-0.5
Unit
set
Category
Screw Press Type Solid Liquid Separator
Delivery Time
30 Days
Package Size
1150x550x1450 mm
Package Weight
270 KG

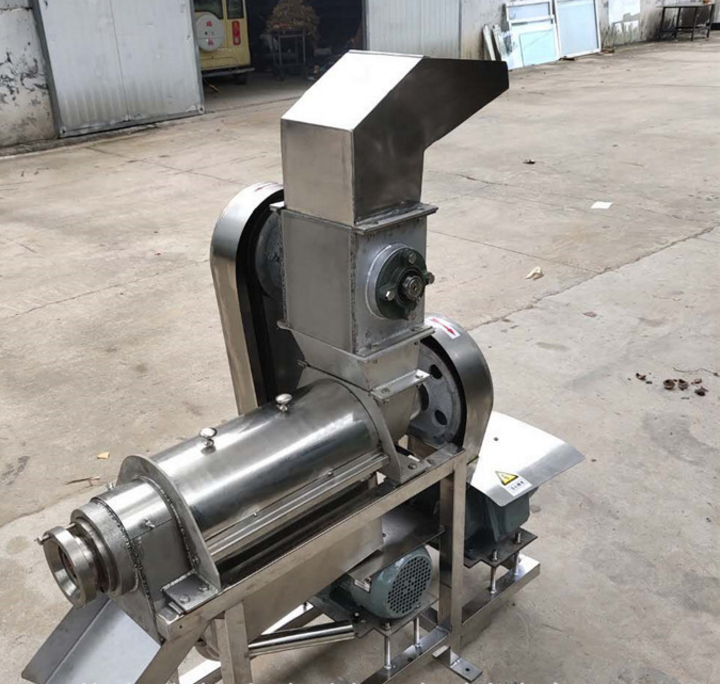

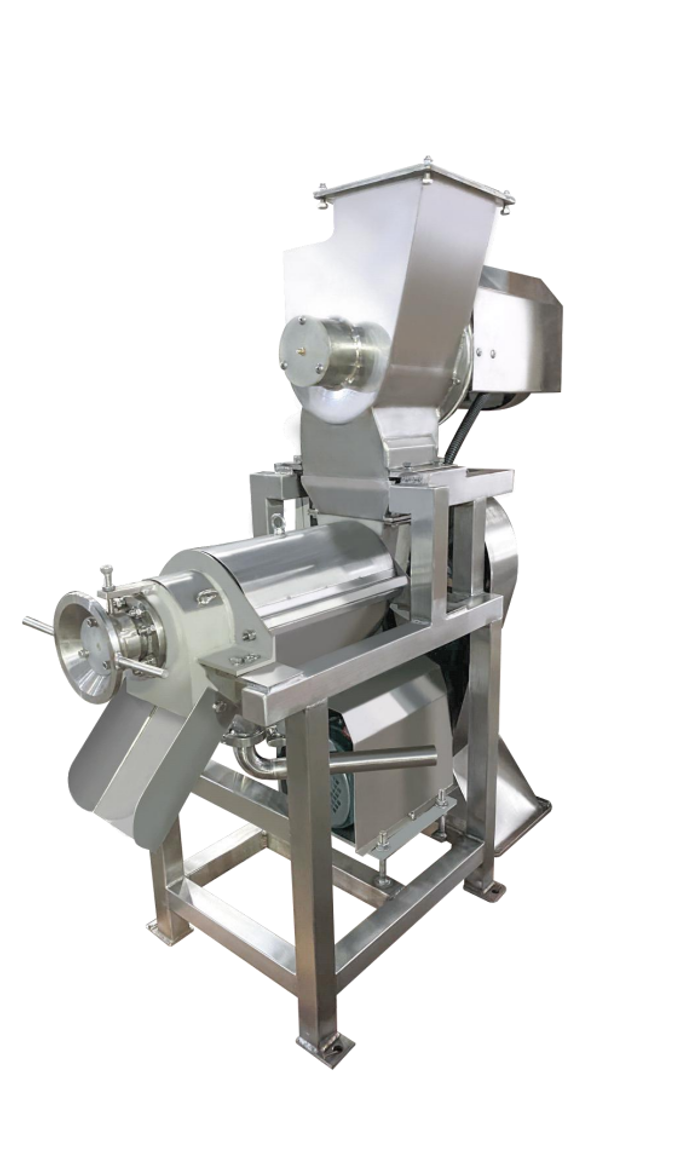

Product Images
Technical Specifications
Main
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Processing Capacity | 500 | kg/h | — |
| Screw Diameter | Φ128 | mm | — |
| Screw Speed | 400 | RPM | — |
| Crusher speed | 1000 | RPM | — |
| Material | SS304 | — | All motors are fitted with SS304 covers |
| Press Motor Power | 3 | kW | — |
| Crusher Power | 1.5 | kW | — |
| Equipment Weight | 180 | kg | — |
| Dimensions | 1030*440*1350 | mm | — |
| Total Installed Capacity | ≥4.5 | kW | — |
| Mesh Size | Φ0.6 | mm | — |
Price
$5730
per set
