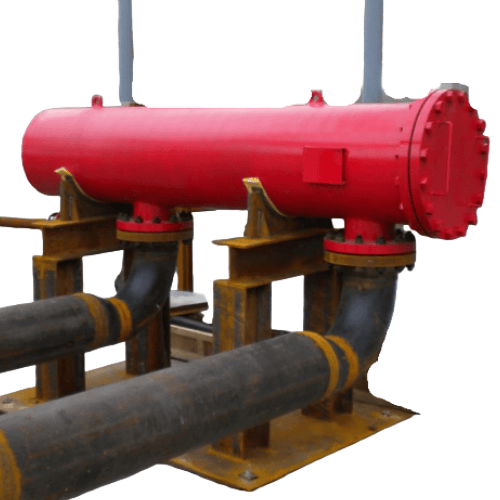

Carbon Steel-6”- Tubular Self Cleaning Filter
Basic Information
Model
JX-GD-W325-SS304
Unit
set
Category
Tubular Self Cleaning Filter
Delivery Time
30 Days
Package Size
1800x700x790 mm
Package Weight
325 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-GD-W325 | — | — |
| Feeding Capacity | Refer to the specification in the price list | m3/h | — |
| Material | Carbon Steel | — | — |
| Design Pressure | 1.0 | MPa | — |
| Testing Pressure | 0.6 | MPa | — |
| Water Loss | <0.01 | MPa | In cleaning state, clean water |
| Equipment Weight | ~300 | KG | — |
| Equipment Size | ~1700*600*675 | mm | — |
Filter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Material | SS304 | — | — |
| Filter Screen Type | Wedge wire screen or Sintered screen | — | — |
| Qty of Filter Screen | 1 | — | — |
| Drum Diameter | Customizable | — | — |
Pipe Diameter
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | 6"/Customizable | — | — |
| Outlet | 6"/Customizable | — | — |
| Drain | 1 1/2"/Customizable | — | — |
| Flange Standard | ANSI/JIS/GB | — | — |
Drive Parts
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 0.25 | KW | — |
| Power Supply | 380V / 50Hz, 3-phase/Customized according to on-site power supply | — | — |
| Motor Brand | Nord/SITI | — | — |
| Electromagnetic Valve | Brand: Chinese famous brand | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | IP55 Housing material: stainless steel | — | — |
| Control System | Siemens PLC integrated with 7" Siemens touch panel | — | — |
| Control Method | Automatic control system, including manual control, time control and difference Pressure Control | — | — |
| Cleaning Time | 60 | s | — |
Price
$7420
per set
