Carbon steel-2000-Belt Type Press
Basic Information
Model
JX-YA-2000-Carbon steel
Unit
set
Category
Belt Filter Press
Delivery Time
30 Days
Package Size
4300x1900x1950 mm
Package Weight
7520 KG

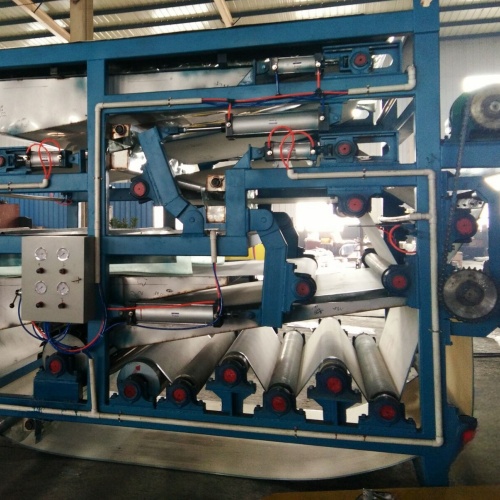

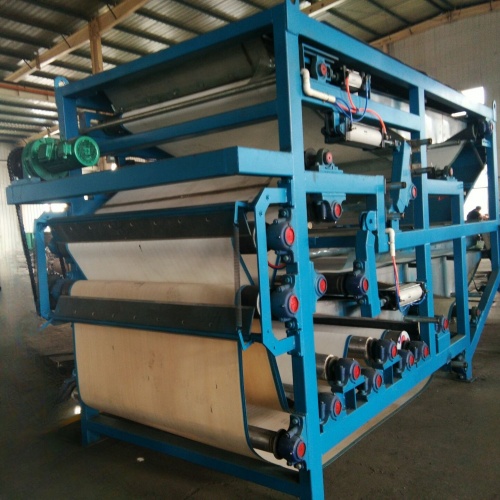

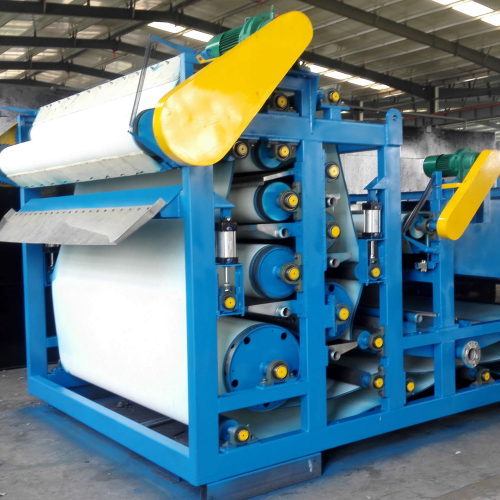

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-YA-2000 | — | — |
| Bandwidth | 2000 | mm | — |
| Processing Capacity | ~10-20 | m³/h | — |
| Filter Belt Flushing Water Pressure | 0.4-0.5 | Mpa | — |
| Tension Air Pressure | 0.25 | Mpa | — |
| Filter Belt Speed | 3.0-20 | m/min | — |
| Feed Moisture Content | ≈99 | % | — |
| Filter Cake Moisture Content | ≤80 | % | — |
| Dimensions | See drawing | mm | — |
Structural Composition
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Main Material | Carbon steel | — | — |
| Frame | Carbon steel | — | — |
| Filter Belt | Polyester nylon, polyester monofilament | — | — |
| Cylinder | Assembly | — | — |
| Correction Device | Mechanical valve | — | — |
| Cleaning Device | Flushing pipes, nozzles, and pumps | — | — |
| Other Configurations | Assembly | — | — |
Drive Part
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Cabinet | PLC, frequency converter, pneumatic control cabinet | — | — |
| Host Power | 2.2+0.75 | KW | — |
Price
$24445
per set
