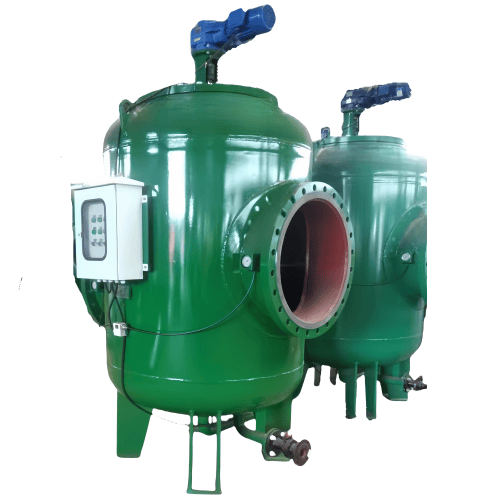

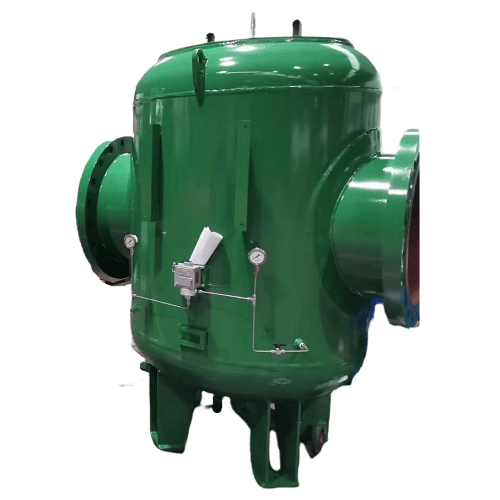

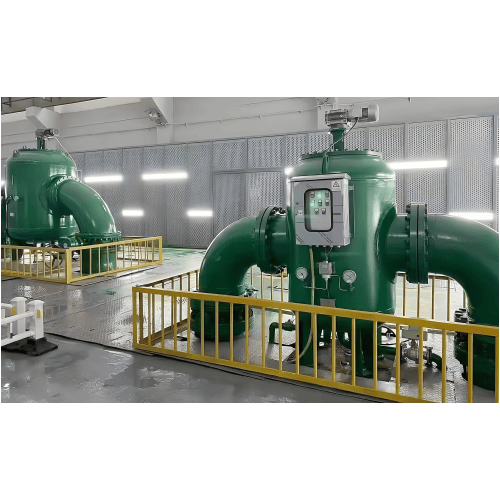

Carbon Steel-1800-Automatic Self-cleaning filter
Basic Information
Model
JX-DN1800-Carbon Steel
Unit
set
Category
Automatic Self-cleaning filter
Delivery Time
30 Days
Package Size
2250x2020x4240 mm
Package Weight
3200 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | Customizable | m3/h | — |
| Housing Material | Carbon Steel | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Working Pressure | 0.6 | Mpa | — |
| Water Loss | <0.08 | Mpa | — |
| Installation Size | 2200*1930*4138 | mm | — |
Pipeline Connection
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | 30”/Customizable | — | — |
| Outlet | 30“/Customizable | — | — |
| Drain | 3”/Customizable | — | — |
| Flange Standard | ANSI/JIS/GB | — | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Qty of Filter Screen | 1 | — | — |
| Filter Screen Material | SS304/SS316/Customizable | — | — |
| Filter Screen Type | Wedge wire screen+perforated screen | — | — |
| Filtration Degree | Customizable | mm | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Cleaning Method | Scrapper,/Brush | — | — |
| Drain Valve | Pneumatic / Electric | — | — |
Driving System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Motor Power | 1.5 | — | — |
| Power Supply | Scrapper, Brush | — | — |
| Motor Brand | Nord/SITI | — | — |
| Pressure Transmitter | Differential Pressure / Pressure | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control Box | IP56/IP55 | — | — |
| Control System | Siemens PLC integrated with 7" Siemens touch panel | — | — |
| Control Method | Differential Pressure /Time | — | — |
Price
$31030
per set
