8m³/h Ultrafiltration + 5m³/h Reverse Osmosis System
Basic Information
Model
JX-PW-C8+5
Unit
set
Category
RO System
Delivery Time
30 Days
Package Size
1x1x1 mm
Package Weight
1 KG

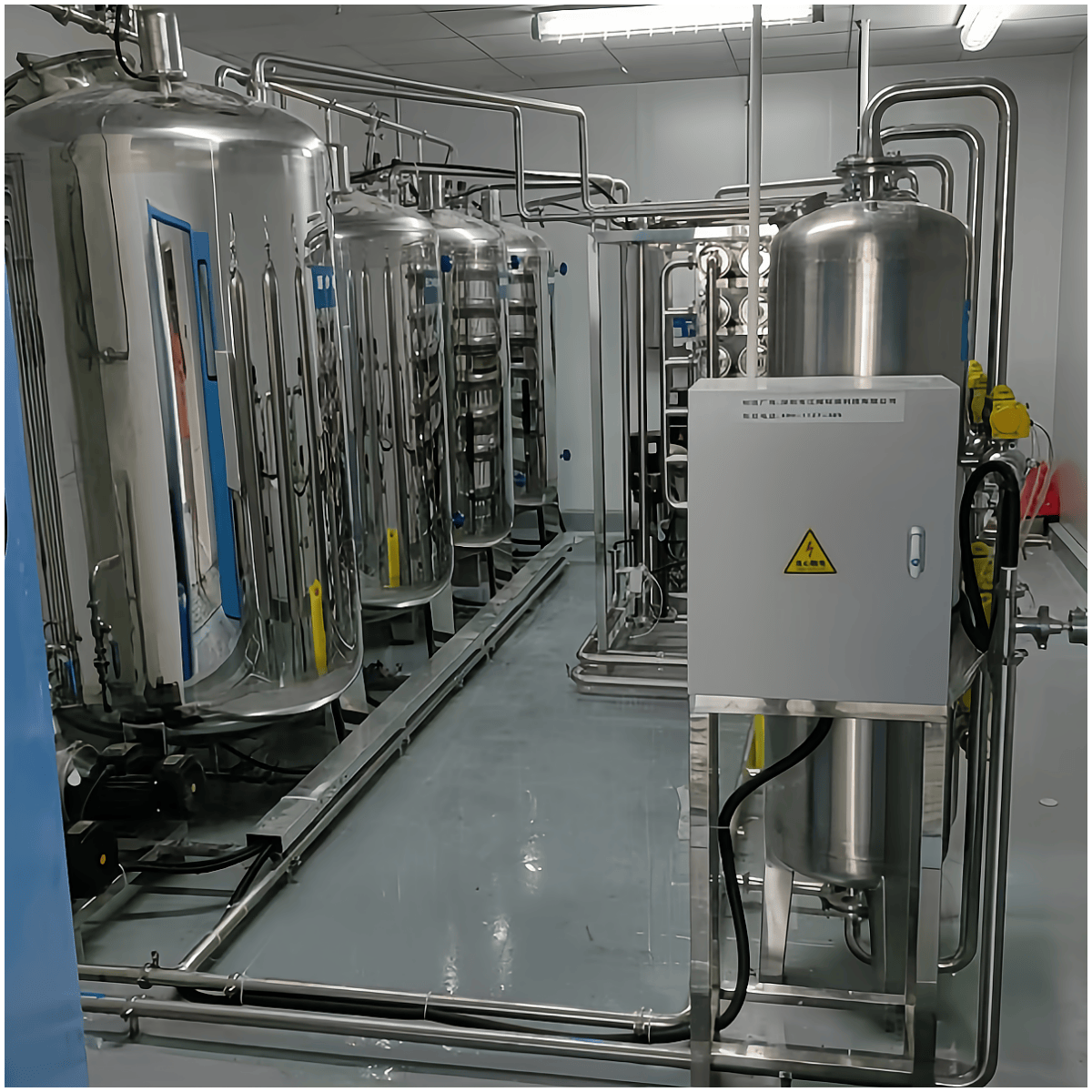

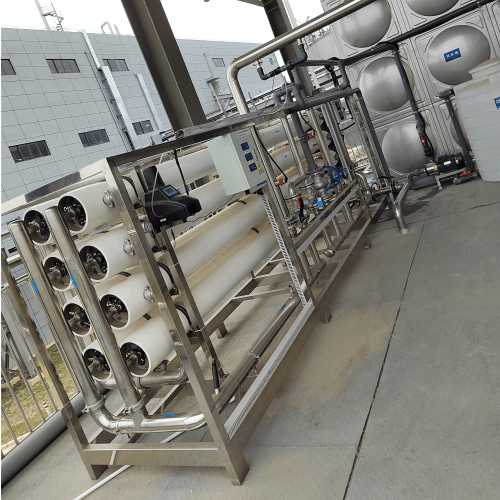

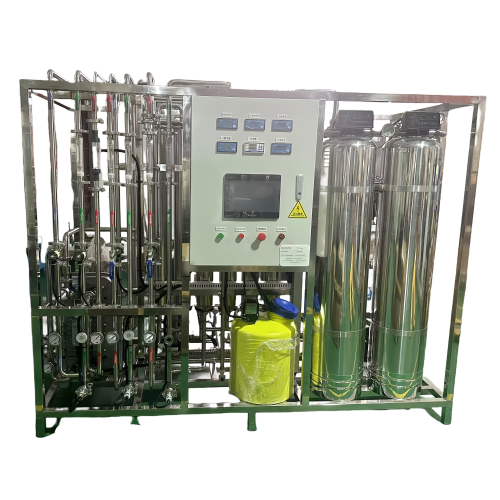

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-PW-C8+5 | — | — |
| Inlet Water Flow | Customizable | m3/h | — |
| Outlet Water Flow | RO Product: 5m³/h (designed at 10°C), Pretreatment: 8m³/h | m3/h | — |
| Inlet Water Quality | 6000ppm | ppm | Refer to water quality report |
| Outlet Water Quality | ≤200us/cm | ppm | — |
| Material | stainless steel | — | — |
Preprocessing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Raw Water Pump | 8T/H | PCS | 1 PC |
| Quartz Sand Filter | 8T/H | Set | — |
| Activated Carbon Filter | 8T/H | Set | 1 PC |
| Security Filter | 1-core 40-inch | Set | 1 PC |
| RO System | Reverse osmosis unit | Set | — |
| Hollow Fiber UF System | AQU200B*1447-F30NC | — | 6PCS |
| Multi-media Filter | Set | — | |
| EDI System | Set | — |
Post-Processing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | Siemens | Set | — |
| pH Adjustment | / | Set | — |
| UV Sterilizer System | / | Set | — |
| Water Storage System | 1 | Pcs | 3m³ |
| Piping And Fittings | DN15-40 | Lot | — |
