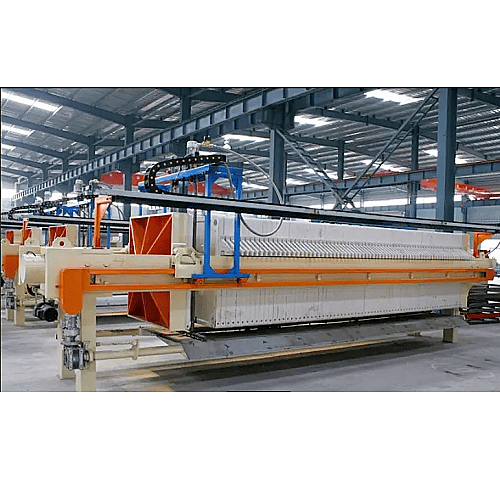

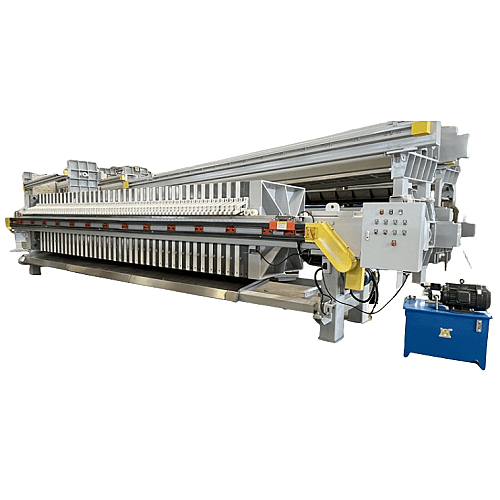

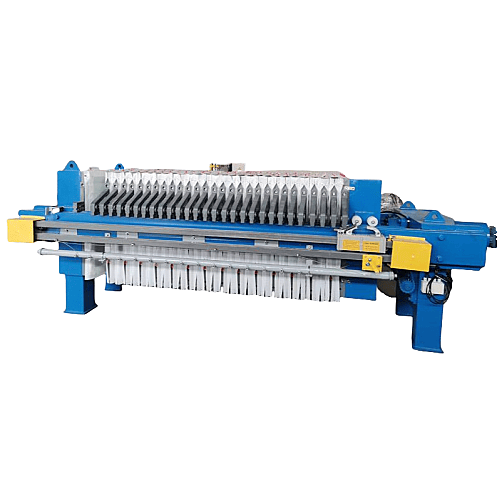

700(2000)-Plate Press Filter-Copy
Basic Information
Model
JX-ZG700/2000-U
Unit
set
Category
Diaphragm Filter
Delivery Time
30 Days
Package Size
13600x4100x2500 mm
Package Weight
52000 KG
Product Images
Technical Specifications
Main Machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-ZG700/2000-U | — | — |
| Compression Pressure | 18-20MPa | — | — |
| Filtration Pressure | ≤0.8MPa | — | — |
| Pressing Pressure | ≤1.2MPa | — | — |
| Compression Method | Hydraulic pressing, automatic pressure holdingssing, automatic pressure maintenance | — | — |
| Pull Plate Form | Variable frequency automatic plate unloading | — | — |
| Motor Power | Oil pump motor 15 Kw + pull plate motor 1.5Kw | — | — |
| Length*Width*Height | ~13492x4020x2400 | — | — |
| Design weight | ~52000 | — | — |
Filter Plate
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Plate Specifications | 2000*2000mm | — | — |
| Filtration Area | 700 | ㎡ | — |
| Filter Chamber Volume | ≤13800L | L | Maximum volume before secondary pressing |
| Filter Chamber Thickness | ≤40mm | mm | — |
| Chamber Filter Plate | 49+2 | — | Yanshan Petrochemical raw materials, reinforced polypropylene; 4000-ton fully automatic high-pressure compression molding machine production |
| Membrane Filter Plate | 50 | — | Imported TPE elastomer |
| Finished Filter Cloth | 100(Headgear) | — | 750B filter cloth |
Basic Structure
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Intermediate feed | — | DN150 standard flange (steel lined with plastic |
| Liquid Discharge Method | Overflow weir discharge | — | — |
| Host Structure | Q345B carbon steel is welded by gas shielded welding and supported by the most stable rectangular steel | — | — |
| Pull Plate System | Variable frequency automatic board pulling, ABS high-strength wear-resistant silent anti-corrosion guide rail, brand new mechanical arm | — | — |
| hydraulic System | Independent hydraulic station, external oil pump technology, high-pressure steel wire oil pipe, double overpressure protection | — | — |
| Electronic Control System | Control cabinets, Schneider Electric components, Sodilon proximity switches, Nanjing Zhipu pressure gauges | — | — |
| Anti-Corrosion Treatment | All parts that carry current are made of PP, the frame uses a shot blasting machine with high-speed sandblasting technology, and it's treated with acrylic polyester coating for corrosion protection | — | — |
| Power oil pump | Uses an external oil pump with a flow rate of 63L/min, long-lasting pump, high pressure | — | — |
| Main Beam Structure | Q345B rectangular steel, with 50% more horizontal strength than steel plate beams; top surface 304 stainless steel slide rail | — | — |
| Liquid Collection Flap | — | — | |
| Liquid Collectionsump | — | — | |
| User-Provided | — | — |
