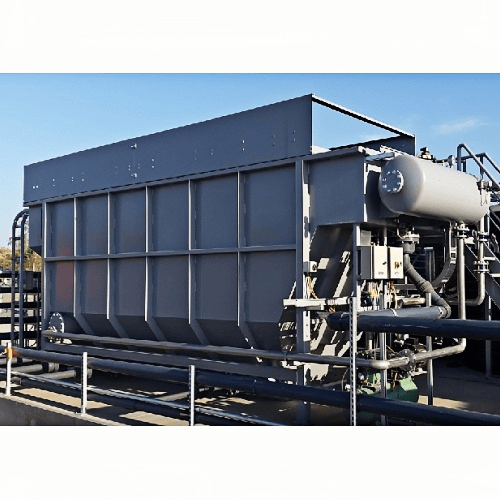

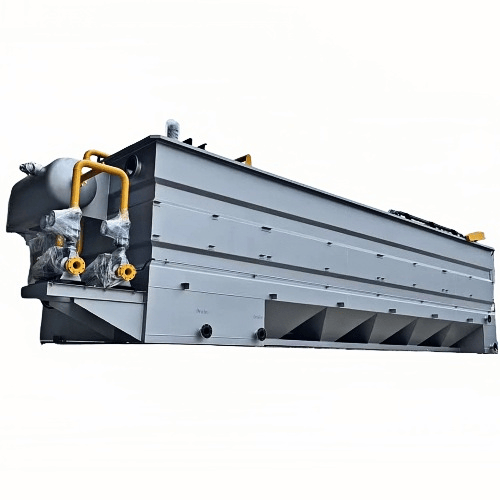

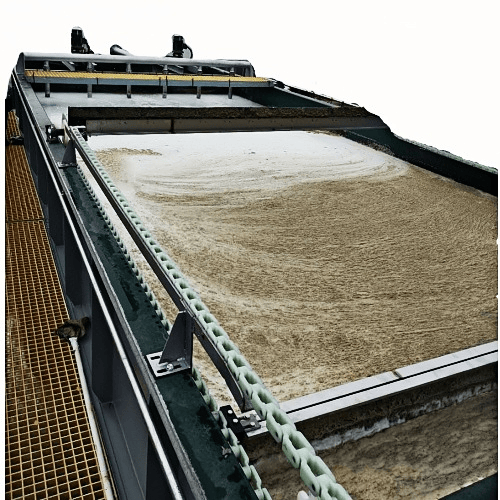

65-SS304-Air flotation machine
Basic Information
Model
JX-QF-65-SS304
Unit
set
Category
DAF
Delivery Time
30 Days
Package Size
9600x2250x2400 mm
Package Weight
9500 KG
Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-QF-65 | — | — |
| Material | SS304 | — | — |
| Capacity | 65 | m3/h | — |
| Power | 0.75*2+7.5+3+0.75 | KW | — |
| Power Supply | 380V/220V, Customizable | — | — |
Air Flotation system parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dissolved Air Pressure | 0-0.6 | Mpa | — |
| Dissolved Air Efficiency | >90% | % | — |
| Dissolved Air Tank | Included | Set | stainless steel |
| Pump | 70m³ | Unit | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN150 | Set | — |
| Outlet | DN150 | Set | — |
| Drain Port | DN80 | Set | — |
| Sludge Discharge Port | DN150 | Set | — |
| Air Source | 0.1 | m³/min | — |
