6-Hydraulic Self-cleaning Filter
Basic Information
Model
JX-SN6
Unit
set
Category
Hydraulic Self Cleaning Filter
Delivery Time
30 Days
Package Size
2200x400x700 mm
Package Weight
435 KG

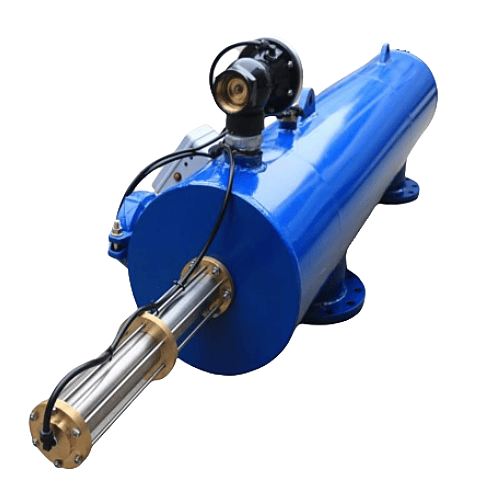

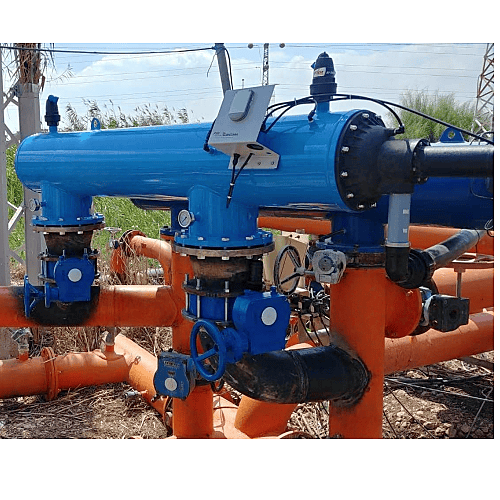

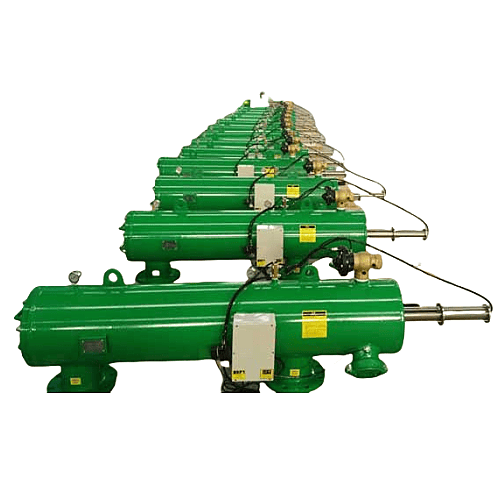

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Treatment Capacity | Refer to the specification in the price list | Kg/h | — |
| Housing Material | Carbon steel | — | — |
| Inlet | DN150 | — | — |
| Outlet | DN150 | — | — |
| Design Pressure | 1.0 | Mpa | — |
| Working Pressure | 0.6 | Mpa | — |
| Installation Size | 2110x350x600 | mm | — |
Filtration System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | SS316 | — | — |
| Filter Screen Type | Perforated Screen+Polyurethane mesh | — | — |
| Filtration Degree | 0.1 | mm | — |
Cleaning System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Suction Nozzle | Carbon steel | — | Customizable |
| Drain Valve | Customizable | — | — |
Control System
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Controller | Differential Pressure /Time | — | — |
Price
$3570
per set
