5 Cubic Meters Per Hour - RO Pure Water System
Basic Information
Model
JX-PW-C5
Unit
set
Category
RO System
Delivery Time
30 Days
Package Size
1x1x1 mm
Package Weight
1 KG

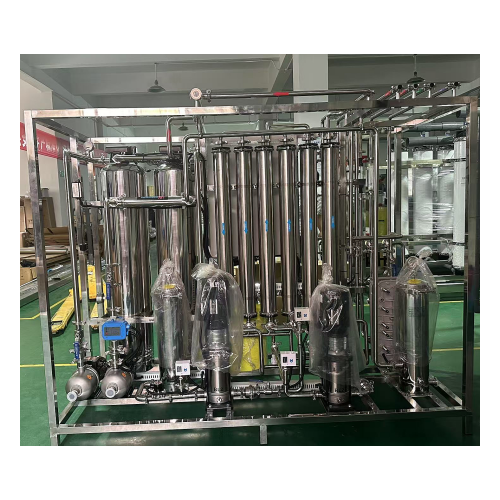

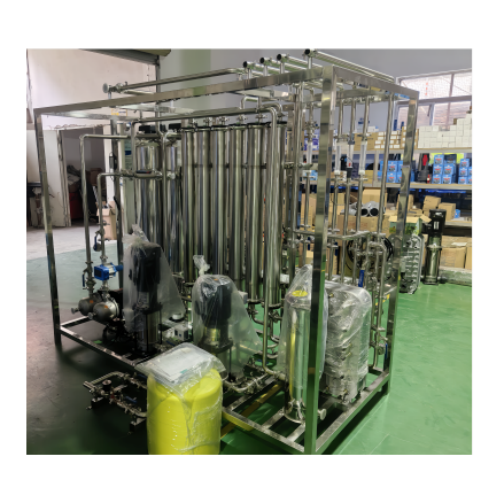

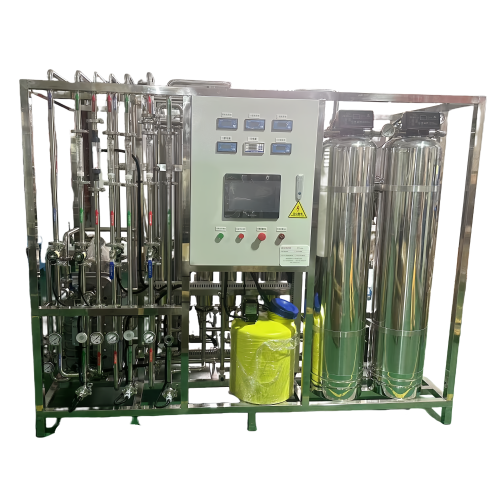

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-PW-C5 | — | — |
| Inlet Water Flow | ~6-10 | m3/h | — |
| Outlet Water Flow | 5 | m3/h | — |
| Inlet Water Quality | EC:300-500 | ppm | — |
| Outlet Water Quality | TOC ＜40 ppm，TDS ＜2000 ppm | ppm | — |
| Material | SS304 | — | — |
Preprocessing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Raw Water Pump | 2.4KW;Q=12T/H, H=39.5m；4KW；Q=8T/H, H=111M | PCS | 2 PCS |
| Multi-media Filter | / | Set | — |
| Quartz Sand Filter | Ф1000×1850 | Set | 1 PC |
| Activated Carbon Filter | Ф1000×1850 | Set | 1 PC |
| Security Filter | 7-core 40-inch；SS304 | Set | 1 PC |
| RO System | Secondary reverse osmosis | Set | — |
| EDI System | / | Set | — |
| Scale Inhibitor Dosing System | 1-9L/h | — | 1 PC |
Post-Processing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | S7-200smart | Set | — |
| pH Adjustment | 1 | Set | — |
| UV Sterilizer System | 1 | Set | — |
| Water Storage System | 2 | Pcs | Raw Water Tank, Pure Water Tank |
| Piping And Fittings | Ensure to meet the requirements | Lot | — |
