5-Air flotation machine
Basic Information
Model
JX-QF-5-SS316
Unit
set
Category
DAF
Delivery Time
30 Days
Package Size
3600x1800x2000 mm
Package Weight
1550 KG

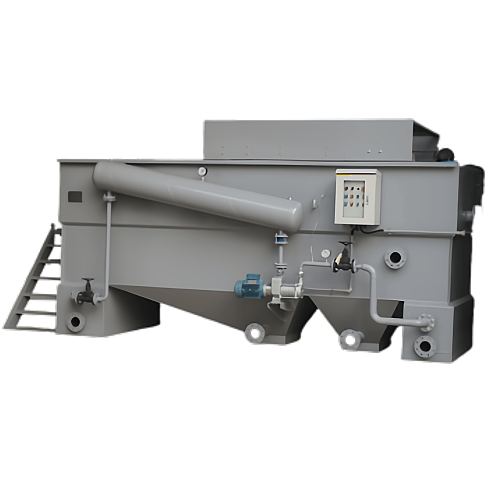

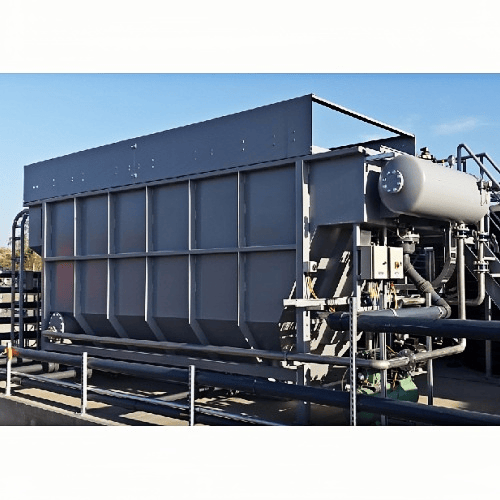

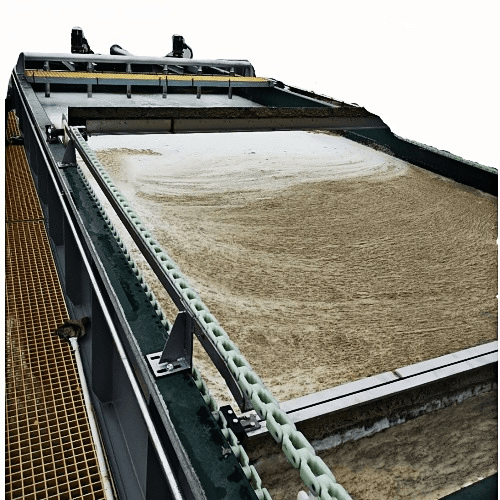

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-QF-5 | — | — |
| Material | SS316 | — | — |
| Capacity | 3-5 | m3/h | — |
| Power | 1.1+0.55*3+0.37 | KW | — |
| Power Supply | 380V/220V, Customizable | — | — |
Air Flotation system parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dissolved Air Pressure | 0.3-0.5 | Mpa | — |
| Dissolved Air Efficiency | >90% | % | — |
| Dissolved Air Tank | Included | Set | — |
| Pump | Aeration booster pump:N=3KW | Unit | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN40 | Set | — |
| Outlet | DN100 | Set | — |
| Drain Port | DN80 | Set | — |
| Sludge Discharge Port | DN100 | Set | — |
| Air Source | 0.06 | m³/min | — |
| Drug Dispensing Equipment | 2 PCS | — | — |
| Other | Ancillary facility | — | — |
