30(870)-Plate Press Filter
Basic Information
Model
JX-ZG30/870-U
Unit
set
Category
Diaphragm Filter
Delivery Time
30 Days
Package Size
3975x1455x1520 mm
Package Weight
4150 KG

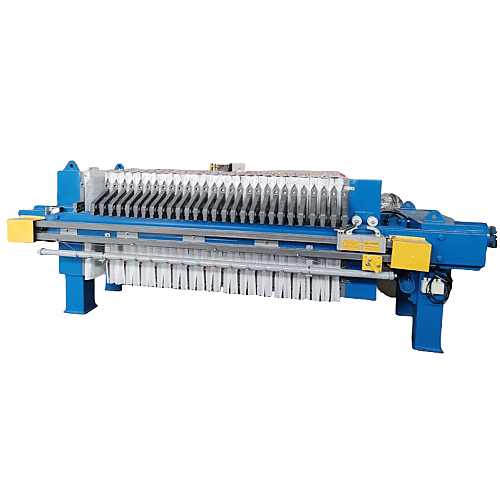

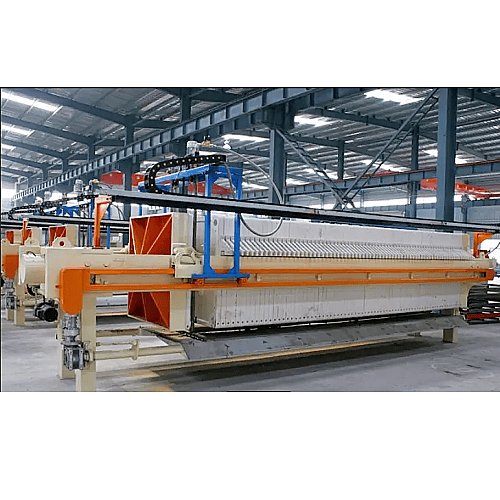

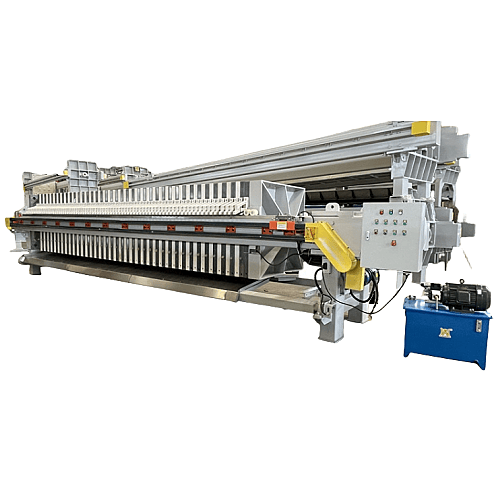

Product Images
Technical Specifications
Main Machine
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-ZG30/870-U | — | — |
| Compression Pressure | 20 | MPa | — |
| Filtration Pressure | ≤0.8MPa | MPa | — |
| Pressing Pressure | ≤1.2MPa | MPa | — |
| Compression Method | Hydraulic pressing, automatic pressure maintenance | — | — |
| Pull Plate Form | Automatic plate pulling | — | — |
| Motor Power | Oil pump motor 4 Kw + pull plate motor 0.75Kw + flip plate motor 0.37Kw | — | — |
| Length*Width*Height | See drawings for details | — | — |
| Design weight | ~4057 | — | — |
Filter Plate
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Plate Specifications | 870*870mm | — | — |
| Filtration Area | 30 | ㎡ | — |
| Filter Chamber Volume | ≤498L | L | Maximum volume before secondary pressing |
| Filter Chamber Thickness | ≤30mm | mm | — |
| Chamber Filter Plate | 13 | — | Yanshan Petrochemical raw materials, reinforced polypropylene; 4000-ton fully automatic high-pressure compression molding machine production (including head and tail) |
| Membrane Filter Plate | 12 | — | Imported TPE elastomer |
| Finished Filter Cloth | 25 PCS | — | — |
Basic Structure
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Feeding Method | Intermediate feed | — | DN80 standard flange (steel lined with plastic |
| Liquid Discharge Method | Double outflow | — | — |
| Host Structure | Q235B carbon steel is welded by gas shielded welding and supported by the most stable rectangular steel | — | — |
| Main Beam Structure | Q355B rectangular steel, 50% higher horizontal strength than steel plate beams; 304 stainless steel slide on the upper surface | — | — |
| Pull Plate System | Automatic pulling plate, ABS high-strength wear-resistant, silent and corrosion-resistant guide rails, new manipulator | — | — |
| hydraulic System | Independent hydraulic station, external oil pump technology, high-pressure steel wire oil pipe, double overpressure protection | — | — |
| Electronic Control System | Wall-mounted control cabinet, Chint low-voltage relay, Nanjing Zhipu pressure gauge | — | — |
| Anti-Corrosion Treatment | The overflow part is made of PP material, the frame shot blasting machine high-speed sand blasting technology, anti-corrosion treatment | — | — |
| Liquid Collection Flap | Carbon steel frame, 304 stainless steel for wetted parts (if any) | — | — |
| Liquid Collectionsump | Made of carbon steel, one on each side. (If available) | — | — |
| User-Provided | Pipelines, instruments, valves, cable trays, water, electricity, oil, foundation platforms, etc. | — | — |
Price
$10475
per set
