3-30“-SS316Cartidge Filter Housing-food grade
Basic Information
Model
JX-HPCF-3(30")-SS316
Unit
set
Category
Cartridge Filter Housing
Delivery Time
30 Days
Package Size
600x500x1750 mm
Package Weight
120 KG

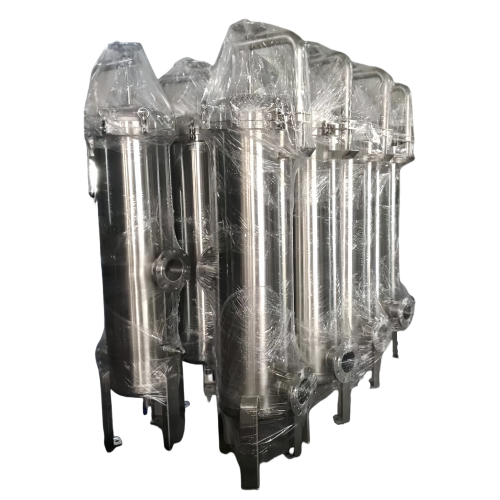

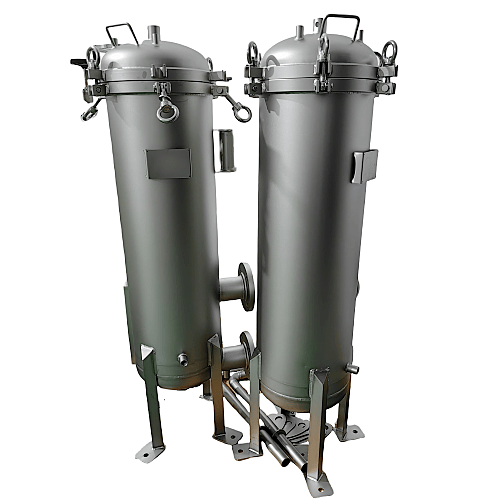

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Type | JX-HPCF-3 | — | — |
| Operating Flow Rate | Customizable | m3/h | — |
| Design Pressure | 1.0 | MPa | — |
| Pressure Test | 1.25 | MPa | — |
| Hydraulic Loss | <0.01 | MPa | Clean condition |
| Maximum Pressure Loss | 0.08 | MPa | — |
| Housing Material | SS316L | — | — |
| Number of Units | 1 | — | — |

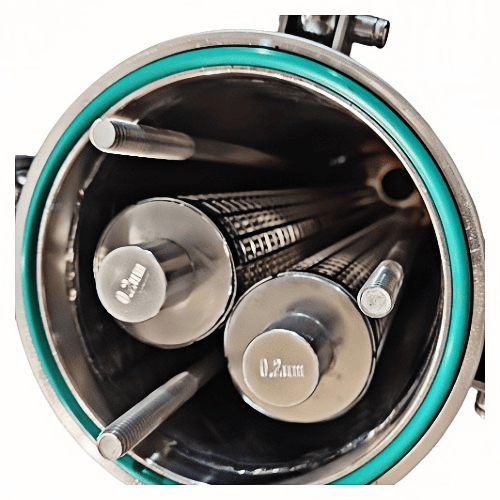

Filter screen
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Filter Screen Material | PP | — | — |
| Filter Precision | Determined by client | μm | — |
| Number of Filter Cores | 3 | pcs | 30 " |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Flange Connection Size | See drawing | — | SO/RF, Compatible with ASME16.5 |
| Drainage Port | See drawing | — | — |
| Bolt Material | SS316 | — | A2-70 |
