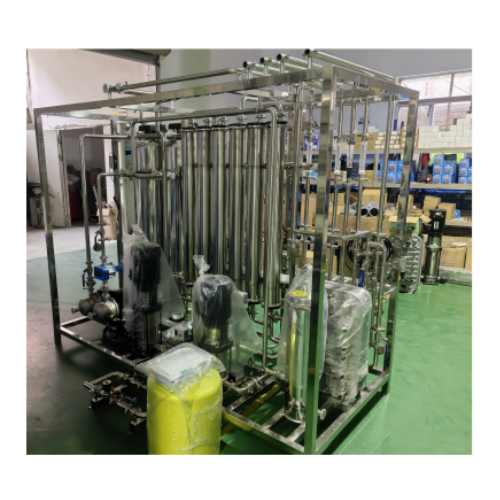

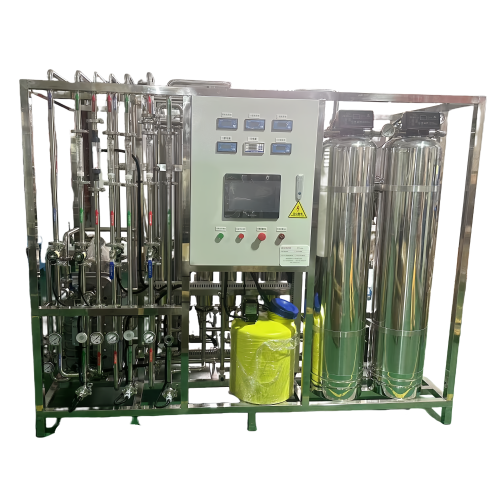

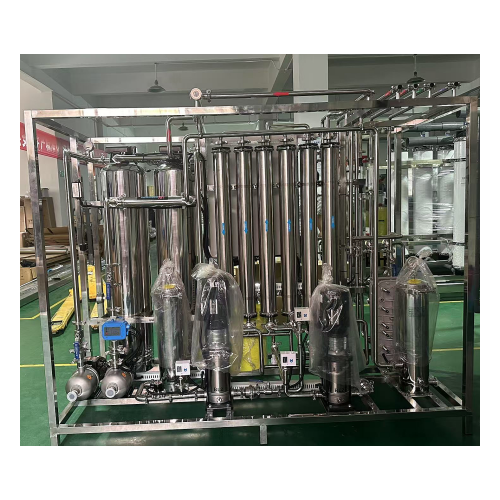

2 Cubic Meters Per Hour - RO Pure Water System
Basic Information
Model
JX-PW-C2
Unit
set
Category
RO System
Delivery Time
30 Days
Package Size
1x1x1 mm
Package Weight
1 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-PW-C2 | — | — |
| Inlet Water Flow | Customizable | m3/h | — |
| Outlet Water Flow | 2 | m3/h | 25℃ |
| Inlet Water Quality | The salt removal rate of the reverse osmosis system is ≥ 98%. | ppm | — |
| Outlet Water Quality | ≤10us/cm | ppm | — |
| Material | SS304 | — | — |
Preprocessing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Raw Water Pump | CHL4-50， H=33m Nw=0.75kw,Q=4m3/h | PCS | Raw Water Tank :1 PCS |
| Multi-media Filter | Ф400×1650 | Set | 1 PCS |
| Softening Filter | Ф400×1650 | Set | 1 PCS |
| Activated Carbon Filter | Ф400×1650 | Set | 1 PCS |
| Security Filter | 5-core 20-inch | Set | 1 PCS\SS304 |
| RO System | Primary reverse osmosis | Set | — |
| EDI System | / | Set | — |
| Quartz Sand Filter | Set | — |
Post-Processing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | PLC(S7-200smart） | Set | — |
| pH Adjustment | / | Set | — |
| UV Sterilizer System | 1 | Set | — |
| Water Storage System | 1 | Pcs | 2m³ |
| Piping And Fittings | DN15-20 | Lot | — |
