10-Air flotation machine
Basic Information
Model
JX-QF-10
Unit
set
Category
DAF
Delivery Time
30 Days
Package Size
7100x2150x2100 mm
Package Weight
4580 KG

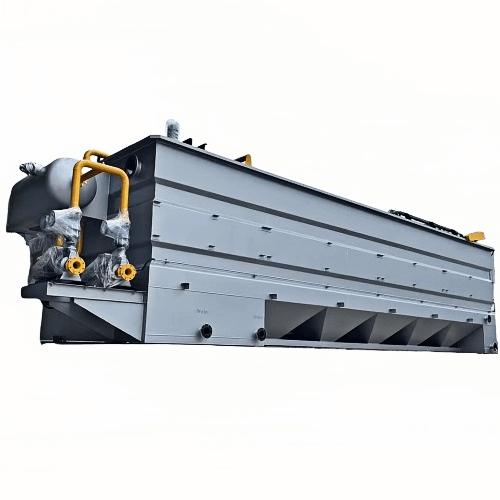

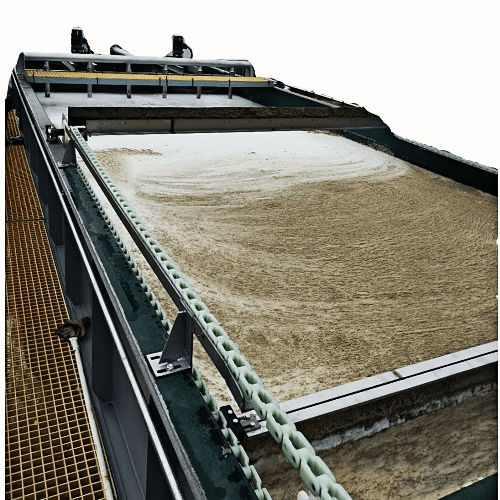

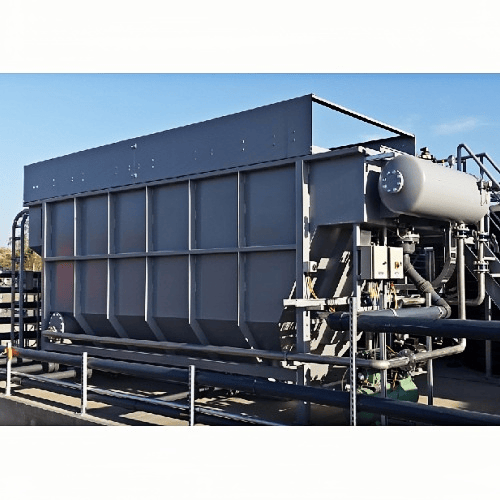

Product Images
Technical Specifications
General Parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-QF-10 | — | — |
| Material | Carbon steel | — | — |
| Capacity | 10 | m3/h | — |
| Power | 0.55 | KW | — |
| Power Supply | 380V/220V, Customizable | — | — |
Air Flotation system parameters
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Dissolved Air Pressure | 0.3-0.5 | Mpa | — |
| Dissolved Air Efficiency | >90% | % | — |
| Dissolved Air Tank | Included | Set | — |
| Pump | 5m³ | Unit | — |
Other
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Inlet | DN100 | Set | — |
| Outlet | DN100 | Set | — |
| Drain Port | DN50 | Set | — |
| Sludge Discharge Port | DN100 | Set | — |
| Air Source | 0.06 | m³/min | — |
Price
$20020
per set
