0.5 Cubic Meters Per Hour - RO Pure Water System
Basic Information
Model
JX-PW-C0.5-SS304
Unit
set
Category
RO System
Delivery Time
30 Days
Package Size
1x1x1 mm
Package Weight
1 KG

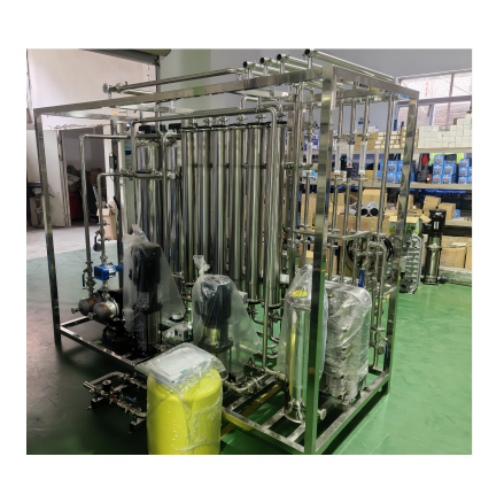

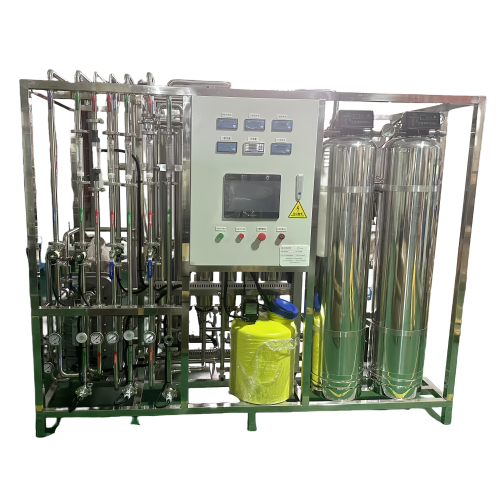

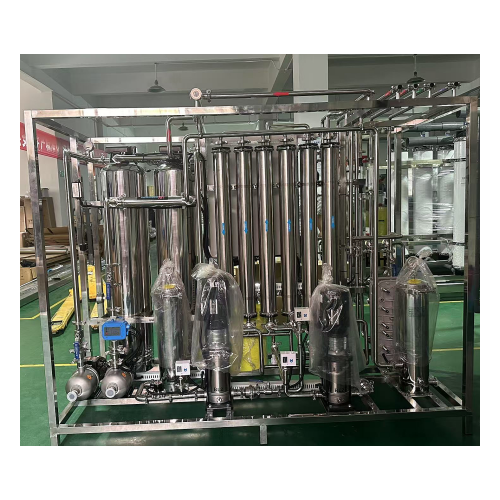

Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-PW-C0.5 | — | — |
| Inlet Water Flow | 1.2 | m3/h | — |
| Outlet Water Flow | 0.5 | m3/h | 25℃ |
| Inlet Water Quality | ≤450us/cm | ppm | — |
| Outlet Water Quality | ≤1us/cm | ppm | — |
| Material | SS304 | — | — |
Preprocessing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Raw Water Pump | BW2-4，0.55KW; Q=2T/H H=29M | PCS | Raw Water Tank :1 PCS |
| Multi-media Filter | / | Set | — |
| Quartz Sand Filter | ф325×1400 | Set | 1 PCS、2T/H |
| Activated Carbon Filter | ф325×1400 | Set | 1 PCS、2T/H |
| Security Filter | 3-core 20-inch；ф150×500 | Set | 1 PCS\SS304 |
| RO System | Secondary reverse osmosis | Set | — |
| EDI System | 1 | Set | 500L/H |
| Sterile Ultrapure Water Tank | 2.5m³ | — | SS304 |
| Ozone Disinfection System | 1 | Set | — |
| Distribution Delivery Pump | BW2-4; 0.55KW; Q=0.5T/H; H=36M； 220V | — | — |
Post-Processing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | PLC(S7-200smart） | Set | — |
| pH Adjustment | 1 | Set | — |
| UV Sterilizer System | 1 | Set | — |
| Water Storage System | 1 | Pcs | — |
| Piping And Fittings | DN25-20 | Lot | — |
