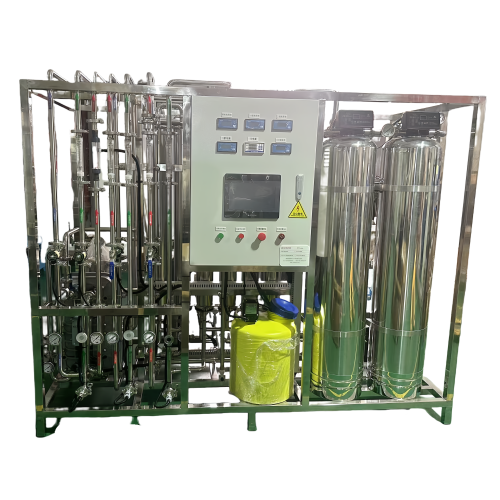

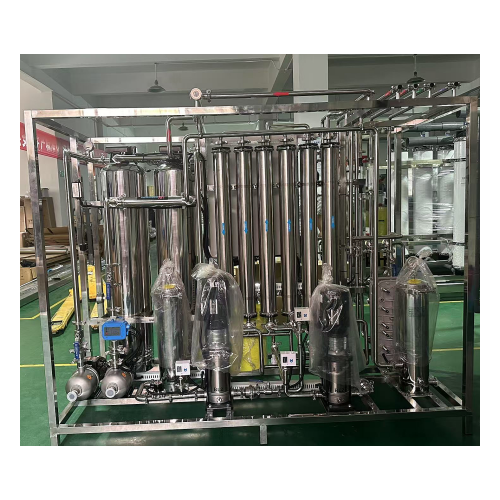

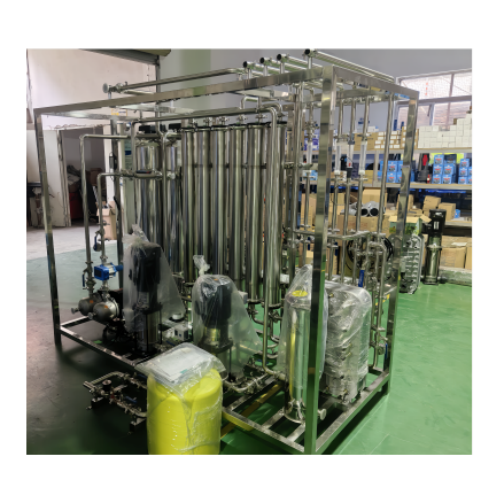

0.25 Cubic Meters Per Hour - RO Pure Water System
Basic Information
Model
JX-PW-C0.25-SS316
Unit
set
Category
RO System
Delivery Time
30 Days
Package Size
1x1x1 mm
Package Weight
1 KG
Product Images
Technical Specifications
Main Unit
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Model | JX-PW-C0.25 | — | — |
| Inlet Water Flow | 0.8 | m3/h | — |
| Outlet Water Flow | 0.25 | m3/h | 25℃ |
| Inlet Water Quality | ≤450us/cm | ppm | — |
| Outlet Water Quality | ≤1us/cm | ppm | — |
| Material | SS316 | — | — |
Preprocessing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Raw Water Pump | BW2-3，0.37KW; Q=1T/H H=26.5M | PCS | Raw Water Tank :1 PCS |
| Multi-media Filter | / | Set | — |
| Quartz Sand Filter | ф300×1370 | Set | 1 PCS |
| Activated Carbon Filter | ф300×1370 | Set | 1 PCS |
| Security Filter | 3-core 20-inch；ф150×500 | Set | 1 PCS\SS304 |
| RO System | Secondary reverse osmosis | Set | — |
| EDI System | 1 | Set | 250L/H |
Post-Processing Section
| Parameter | Specification | Unit | Notes |
|---|---|---|---|
| Control System | PLC(S7-200smart） | Set | — |
| pH Adjustment | 1 | Set | — |
| UV Sterilizer System | 1 | Set | — |
| Water Storage System | 1 | Pcs | — |
| Piping And Fittings | DN25-20 | Lot | — |
